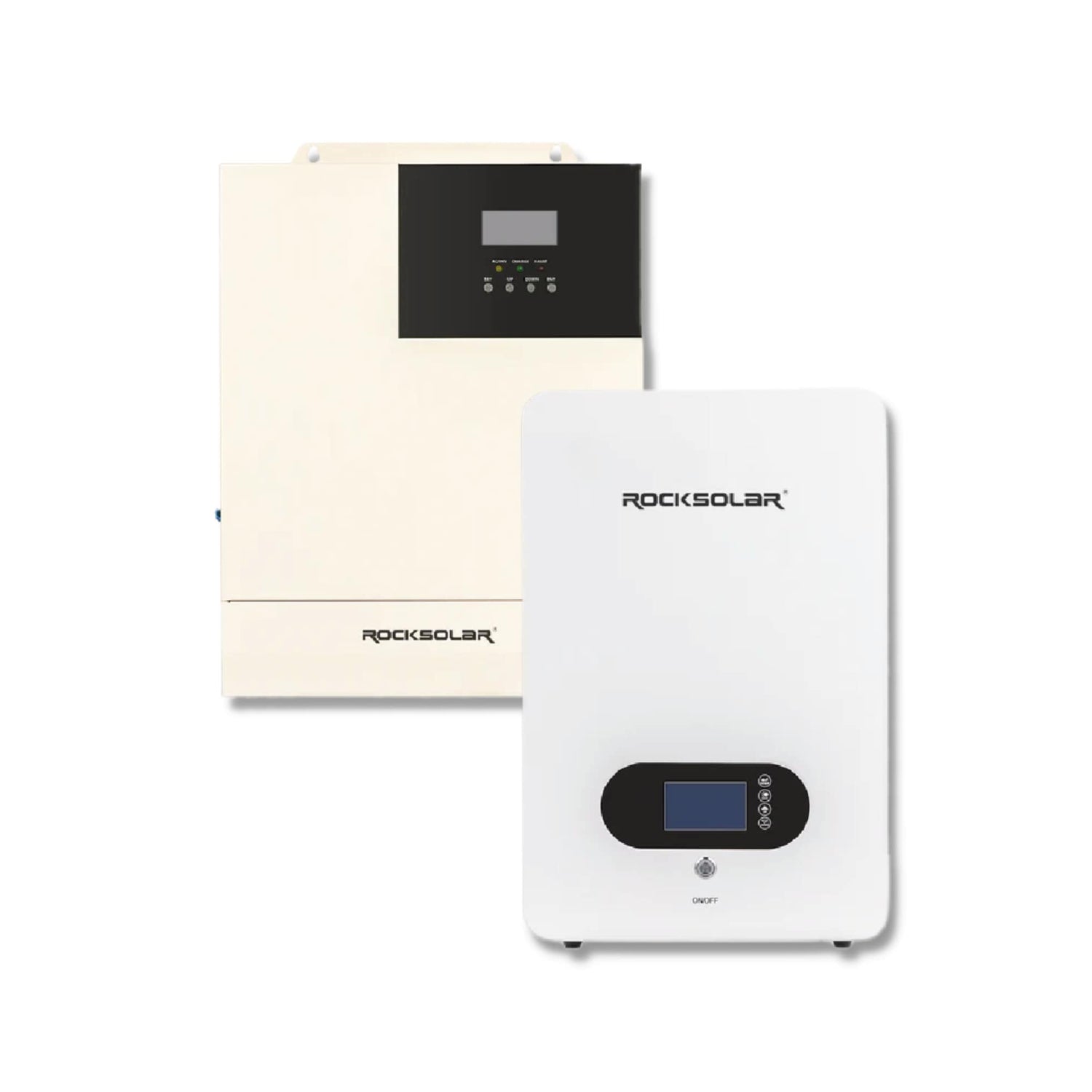

PowerShield Series I Backup Power System

Image 1

1x

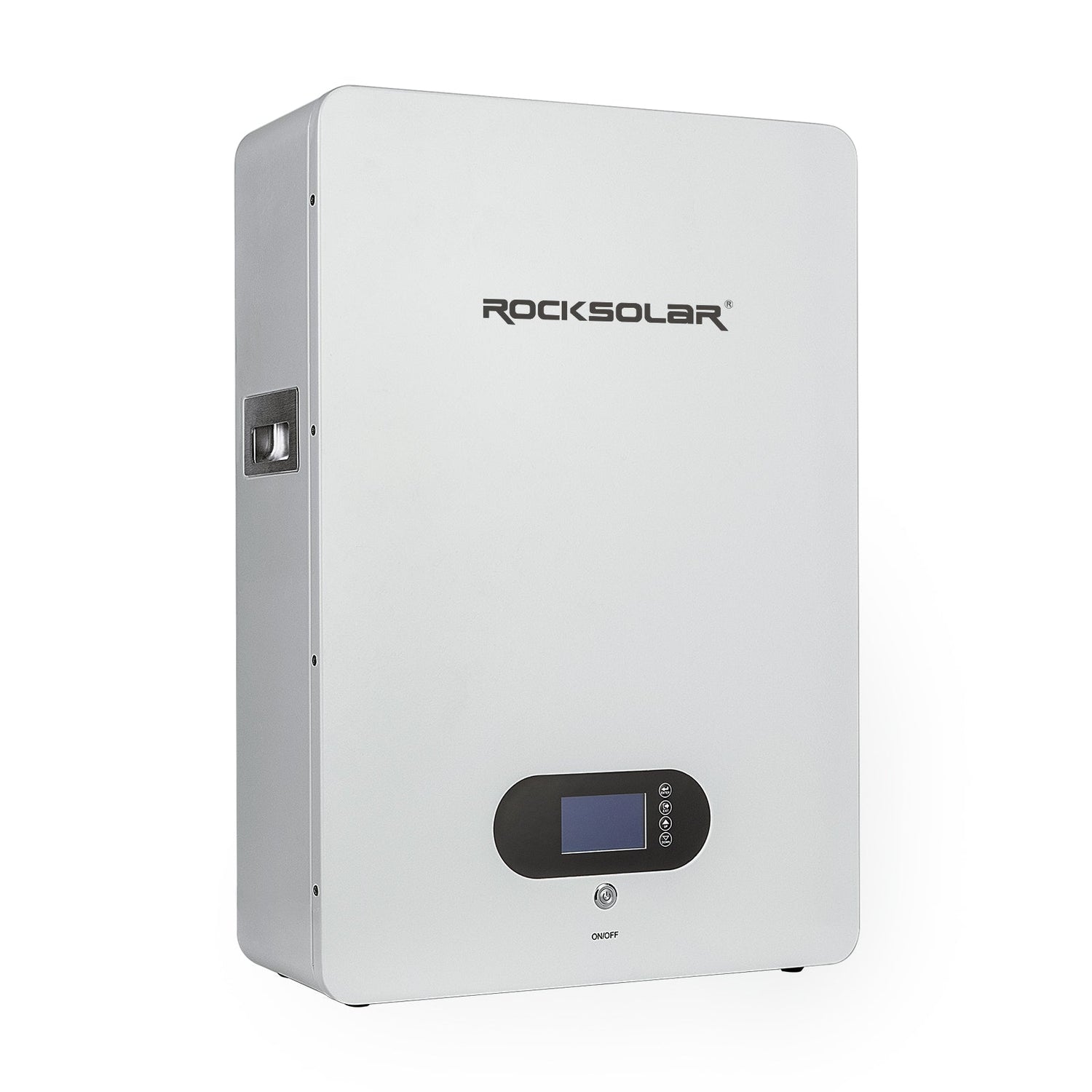

48V 50Ah LiFePO4 Battery Pack
Image 2

1x

Pure Sine Wave 48V 3500W Energy Storage Inverter Control All-in-One Machine
  • ROCKSOLAR 48V 50Ah LiFePO4 Battery Pack -



  • High Safety Standards: The ROCKSOLAR 48V 50Ah LiFePO4 Battery is equipped with a range of safety functions, including over-voltage, under-voltage, over-current, short protection functions, and high/low-temperature protection. This ensures the safety and security of Canadians during power outages.



  • Efficient and Durable: With a cycle life of over 3000 cycles at 80% depth of discharge and an impressive charging and discharging efficiency of 95%, the ROCKSOLAR 48V 50Ah LiFePO4 Battery is designed for efficiency and durability.

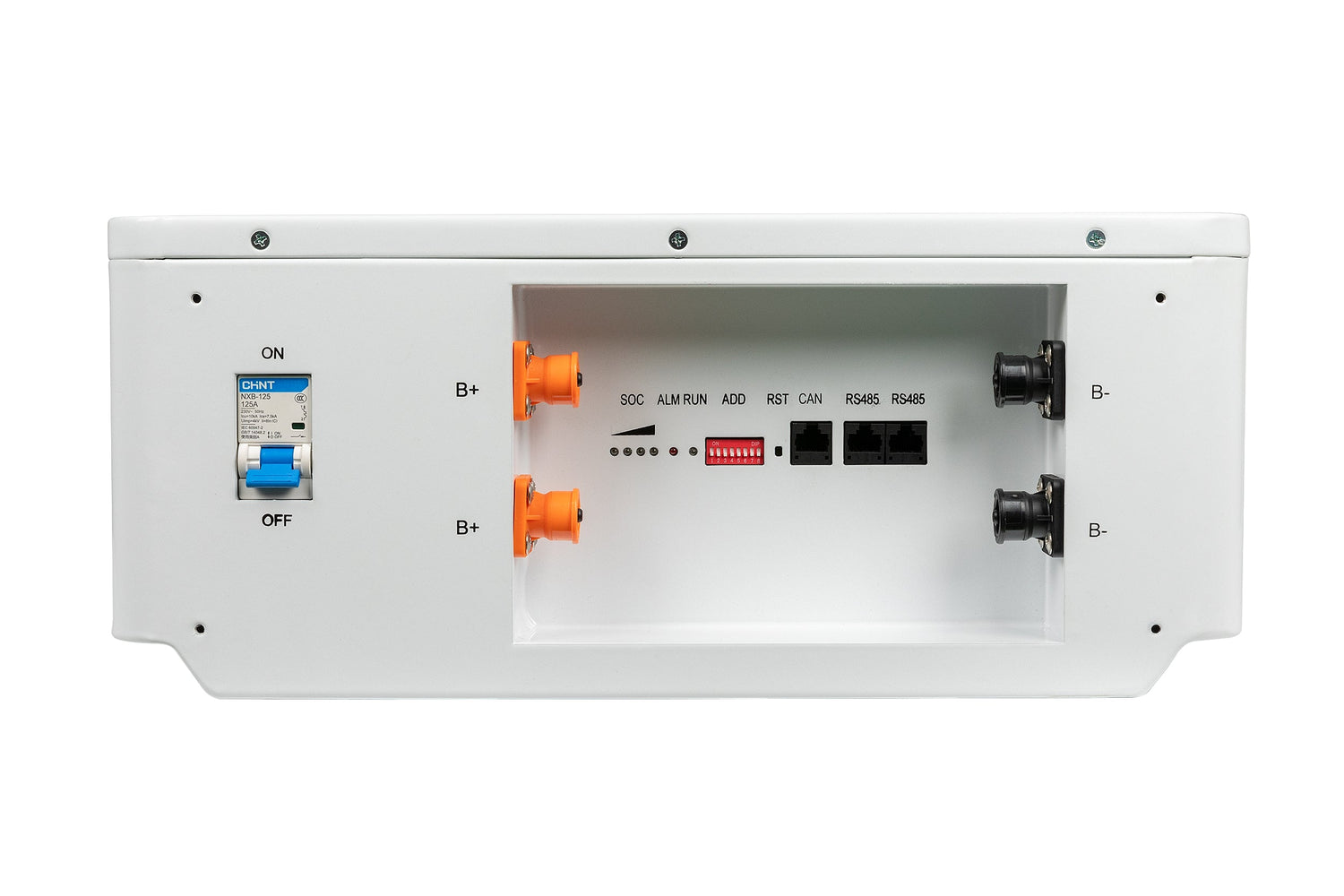

  • Communication Functionality: The battery features RSCan/RS485 Communicate functions, allowing for easy communication with external devices. This ensures that homeowners can stay informed about the status of the battery and any potential issues.



  • Compact Design: The battery has a compact design, with dimensions of 450300175mm and weighs approximately 26kg. This makes it an ideal energy storage solution for homeowners with limited space.



  • History Recording: The battery comes equipped with a balance function, alarm function, and storage function, recording up to 300 history events of the battery and displaying the state of charge (SOC) and alarms using both LED and LCD screens. This allows homeowners to track the battery's performance and detect any potential issues.



  • Long-Lasting Solution: The ROCKSOLAR 48V 50Ah LiFePO4 Battery is a high-quality, long-lasting, and safe energy storage solution for Canadians. With its high cycle life and charging and discharging efficiency, it provides uninterrupted power supply during power outages, ensuring the comfort and safety of families.



  • Dedicated Technical and Customer Support for Entire Product Life: ROCKSOLAR's Canada Technical and Customer Support Center Located in Waterloo, ON . Tech Support Line: 1-800-858-4318
  • ROCKSOLAR Pure Sine Wave 48V 3500W Energy Storage Inverter Control All-in-One Machine -



  • Advanced SPWM technology: The ROCKSOLAR Pure Sine Wave 48V 3500W Energy Storage Inverter features with advanced SPWM technology that outputs a pure sine wave, ensuring the safe and stable operation of all connected appliances.

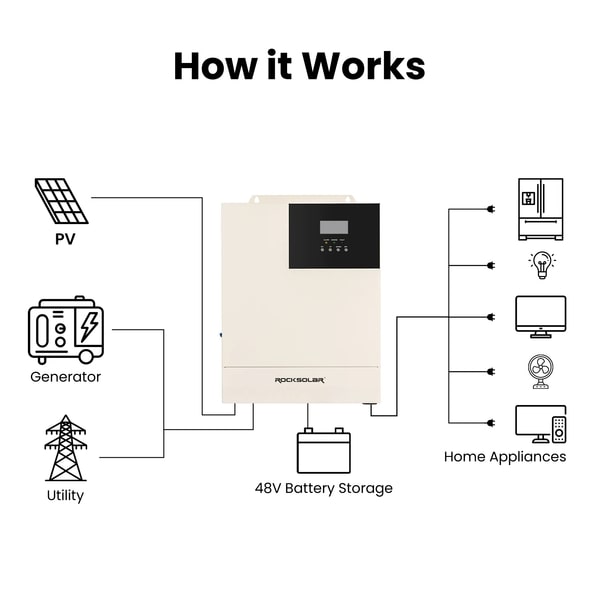

  • Two output modes: The inverter provides two output modes of mains bypass and inverter output, ensuring uninterrupted power supply during power outages.



  • MPPT technology: The advanced MPPT technology ensures a tracking efficiency of up to 99.9%, ensuring efficient use of solar energy.



  • Multiple charging modes: The inverter has four optional charging modes, including solar-only, mains priority, solar priority, and mixed charging, providing versatile and efficient charging of the system.

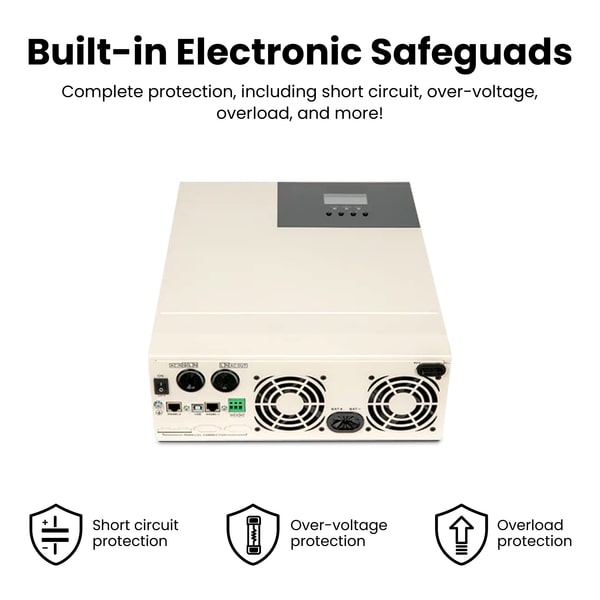

  • Multiple protection functions: The inverter offers 360° all-round protection with multiple protection functions, including short circuit protection, overvoltage and undervoltage protection, overload protection, and backfill protection.

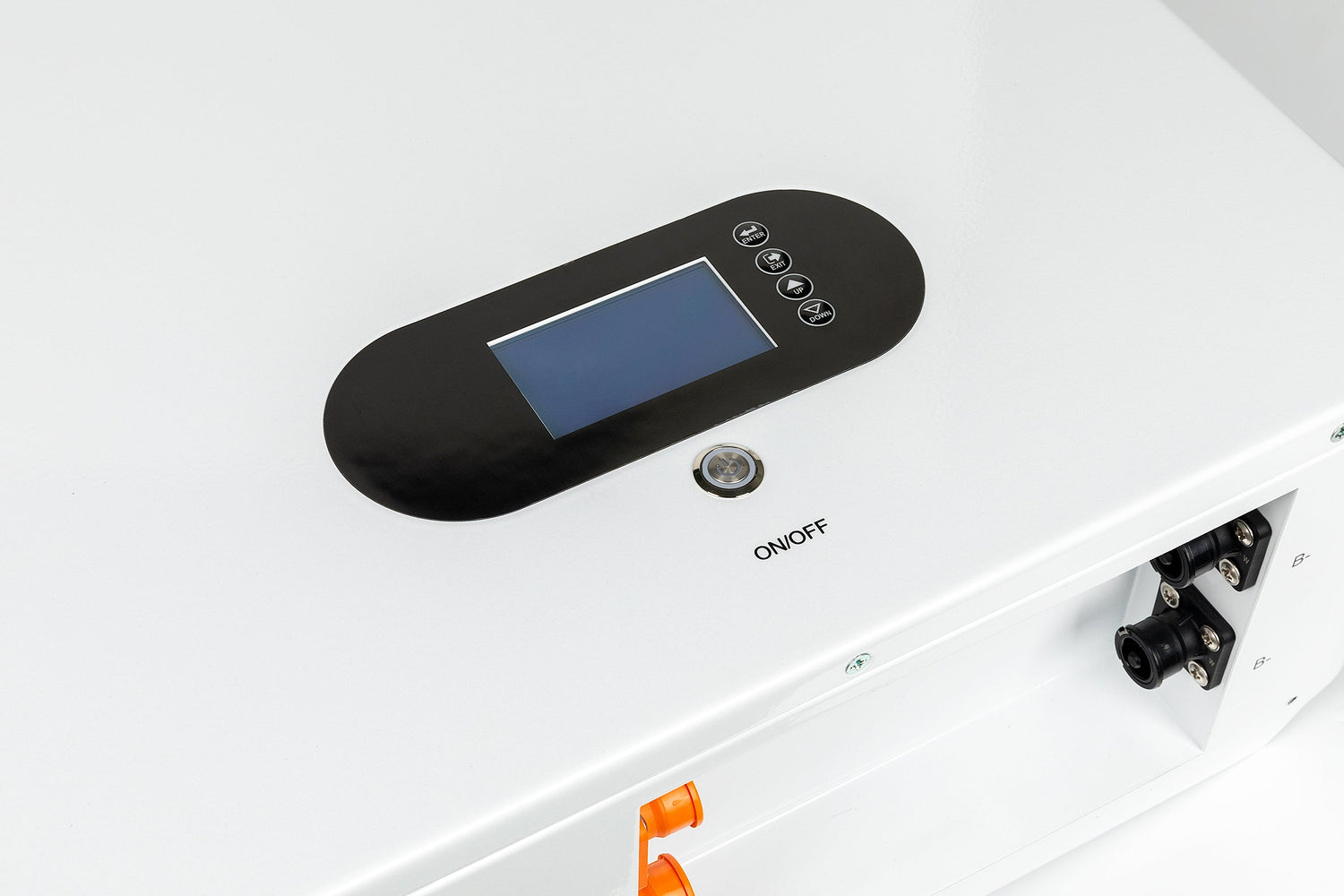

  • LCD and LED screen design: The inverter has an LCD liquid crystal screen design, along with 3 LED indicators, displaying system data and operating status dynamically.



  • Dedicated Technical and Customer Support for Entire Product Life: ROCKSOLAR's Canada Technical and Customer Support Center Located in Waterloo, ON . Tech Support Line: 1-800-858-4318

ROCKSOLAR 48V 50Ah LiFePO4 Battery Pack -


Product Name

ROCKSOLAR 48V 50Ah LiFePO4 Battery Pack

Model No.

XT-P4850

Battery Chemistry Type

Lithium-iron Phosphate

Rated Capacity

50Ah

Rated Power

2560Wh

Nominal Voltage

51.2V

Working Voltage Range

40.5-57.6V

Charging Voltage

57.6-58.V

Internal Impedance

≤40mΩ

Standard charge

Constant Current 10A, Constant Voltage :57.6V

Standard discharge

Constant current:10A, Discharge End voltage: 43.2V

Maximum Continuous Charge Current

50A

Maximum Continuous Discharge Current

50A

Operation Temperature Range

Charge: 0~45℃

Discharge: -20~60℃

Charging/Discharging Efficiency

95%

Cycle Life

≥3000(DOD 80%)

Storage Temperature Range

Less than 12 months: -20~25℃

less than 3 months: -20~40℃

Less than 7 day : -20~65℃

Months Self Discharge

≤3%

Dimensions

450*300*175mm

Weight

About26 Kg



ROCKSOLAR Pure Sine Wave 48V 3500W Energy Storage Inverter Control All-in-One Machine -



Product Name

ROCKSOLAR Pure Sine Wave 48V 3500W Energy Storage Inverter Control All-in-One Machine

Model

HFP4835U80-145

Allowable Number of Parallel Machines

1~6 units

Rated Input Voltage

110/120Vac

Input Voltage Range

(90Vac-140Vac)±2%

Frequency

50Hz/ 60Hz (automatic detection)


47±0.3Hz ~ 55±0.3Hz (50Hz);

Frequency Range

57±0.3Hz ~ 65±0.3Hz (60Hz);

Overload/Short Circuit Protection

breaker

Maximum Efficiency

>95%

Conversion Time

10ms (typ.)

AC Backfeed Protection

have

Maximum Bypass Overload Current

40A

Rated Output Power (VA)

3500

Rated Output Power (W)

3500

Rated Output Voltage (Vac)

120Vac

Maximum Efficiency

>91%

(102%<Load<125%) ±10%: Report an Error and Turn off the Output after 5 Minutes

(125%<Load<150%) ±10%: Report an Error and Turn off the Output after 10 Seconds

Load>150% ±10%: Report an Error and Turn off the Output after 5 Seconds

Solar Energy Storage Inverter Control All-in-One Machine


The PowerShield Series 1 Backup Power System is an energy storage solution that comprises two main components - the ROCKSOLAR 48V 50Ah LiFePO4 Battery Pack and the ROCKSOLAR Pure Sine Wave 48V 3500W Energy Storage Inverter Control All-in-One Machine.

The ROCKSOLAR 48V 50Ah LiFePO4 Battery Pack features several safety functions, including over-voltage, under-voltage, over-current, short protection functions, and high/low-temperature protection, ensuring the safety and security of your home.

The ROCKSOLAR 48V 50Ah LiFePO4 Battery Pack boasts an impressive charging and discharging efficiency of 95%, making it a long-lasting and efficient energy storage solution.

The ROCKSOLAR Pure Sine Wave 48V 3500W Energy Storage Inverter Control All-in-One Machine is an advanced solar inverter designed to output a pure sine wave, ensuring the safe and stable operation of all connected appliances.

The ROCKSOLAR Pure Sine Wave 48V 3500W Energy Storage Inverter Control All-in-One Machine features two output modes of mains bypass and inverter output, providing uninterrupted power supply during power outages.

The PowerShield Series 1 Backup Power System is designed for efficiency, durability, and safety, making it a high-quality and long-lasting energy storage solution for Canadians. With this backup power system, you can rest assured that your home will have uninterrupted power supply during power outages, ensuring the safety and comfort of your family.
