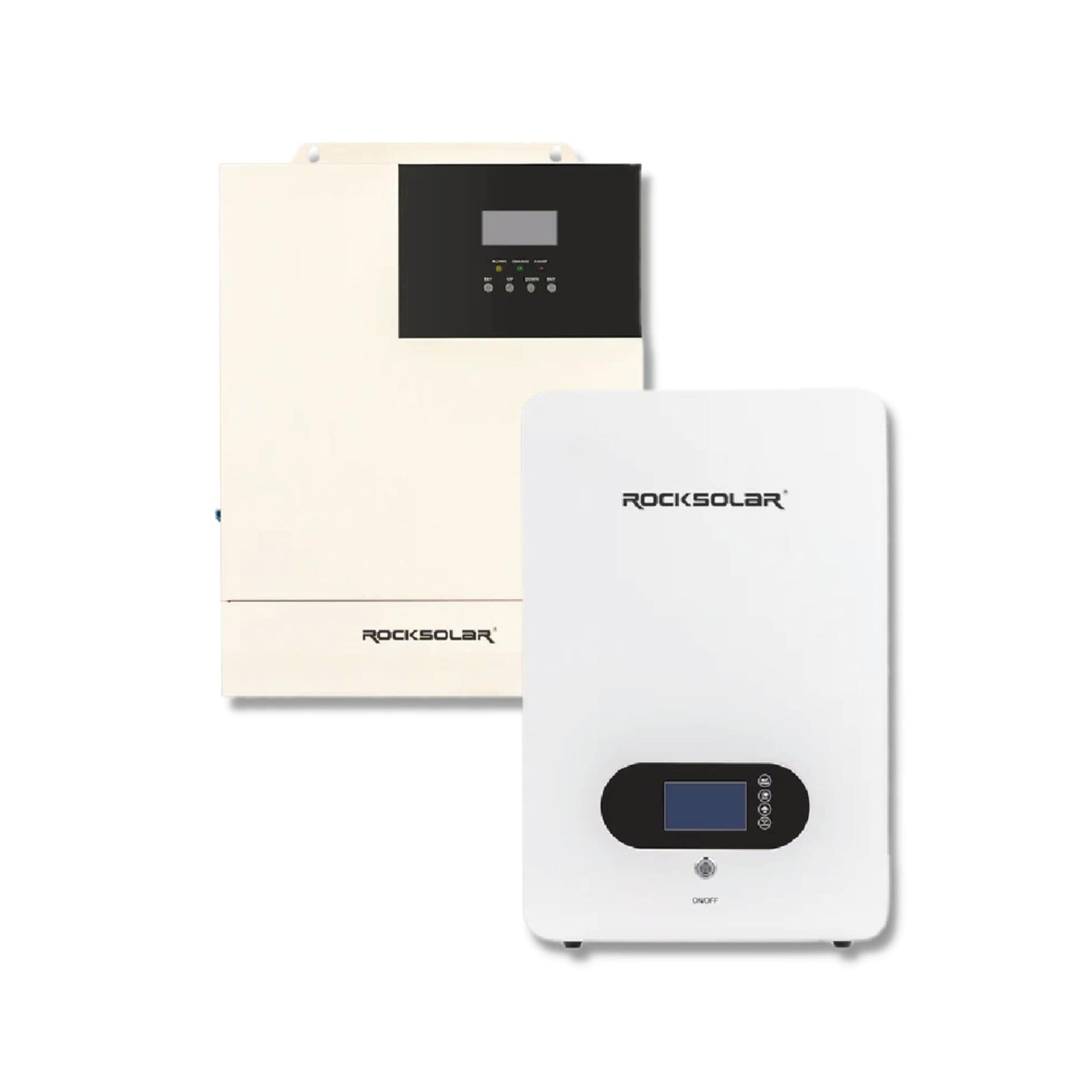

PowerShield Series I Backup Power System

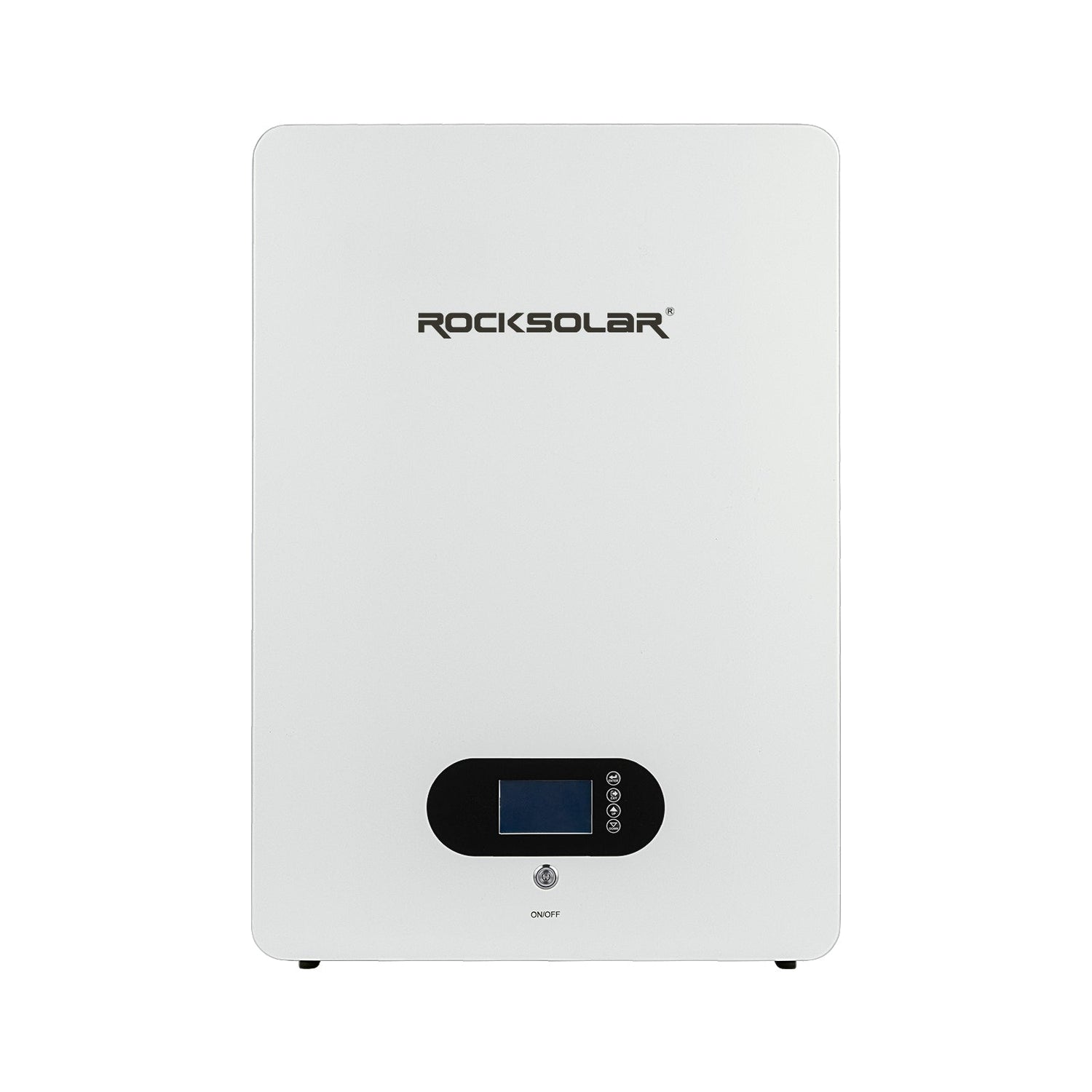

- ROCKSOLAR 48V 100Ah LiFePO4 Battery Pack -
- Reliable and Efficient Power Solution: The ROCKSOLAR 48V 100Ah LiFePO4 Battery is a reliable and efficient power solution for backup power systems in Canada.
- Dependable Power Source: This lithium-iron-phosphate battery offers a dependable power source with over-voltage, under-voltage, over-current, short protection, and high/low-temperature protection.
- Long-Lasting and Efficient: With over 3000 cycles at 80% depth of discharge, the ROCKSOLAR 48V 100Ah LiFePO4 Battery is a long-lasting and efficient choice for backup power, lowering energy bills, or living off the grid.
- Compact Design: The battery has a compact design, with dimensions of 450300175mm and weighs approximately 26kg. This makes it an ideal energy storage solution for homeowners with limited space.

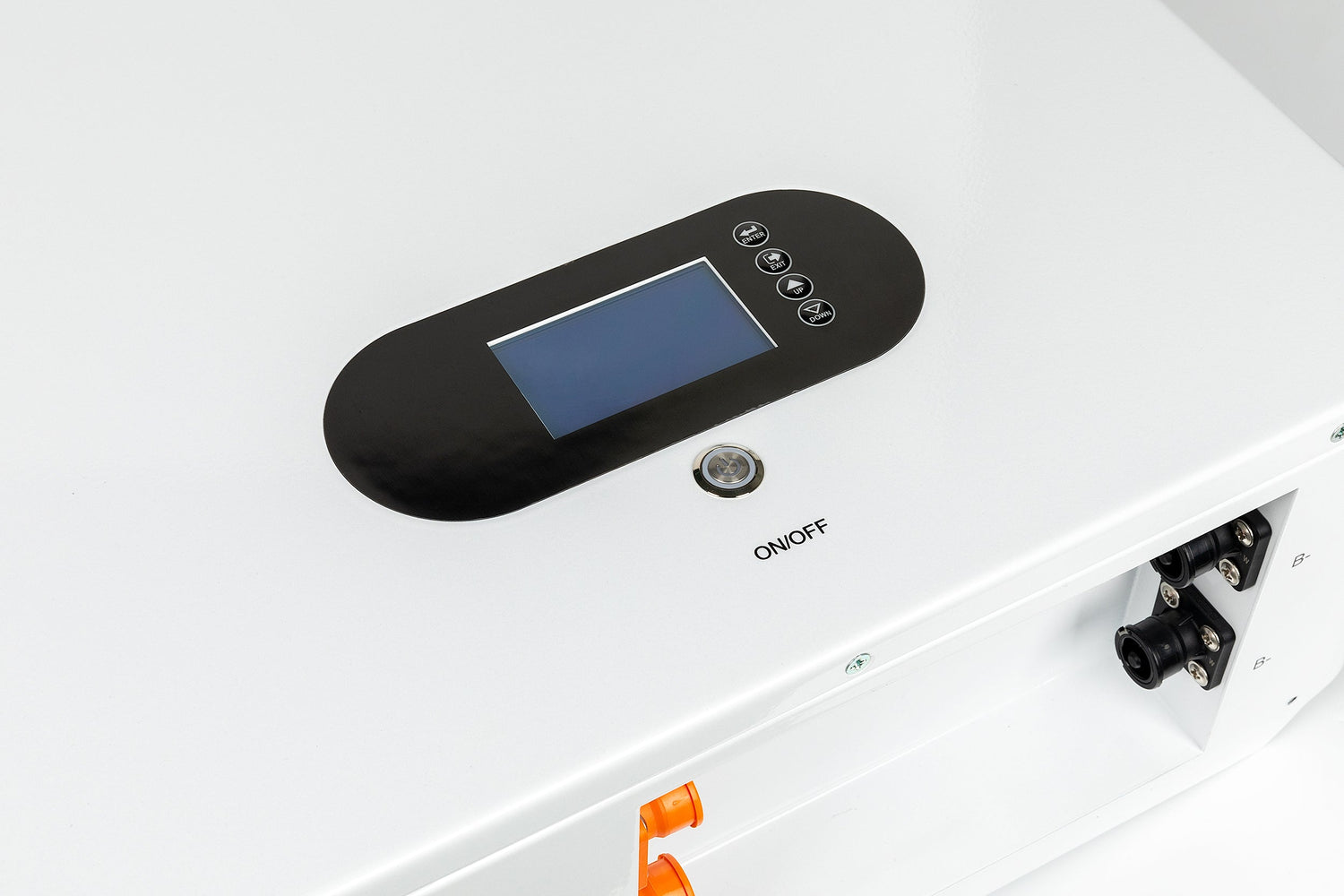

- History Recording: The battery comes equipped with a balance function, alarm function, and storage function, recording up to 300 history events of the battery and displaying the state of charge (SOC) and alarms using both LED and LCD screens. This allows homeowners to track the battery's performance and detect any potential issues.
- Long-Lasting Solution: The ROCKSOLAR 48V 50Ah LiFePO4 Battery is a high-quality, long-lasting, and safe energy storage solution for Canadians. With its high cycle life and charging and discharging efficiency, it provides uninterrupted power supply during power outages, ensuring the comfort and safety of families.
- Efficient Charging and Discharging Capabilities: The battery has efficient charging and discharging capabilities, providing maximum battery life.

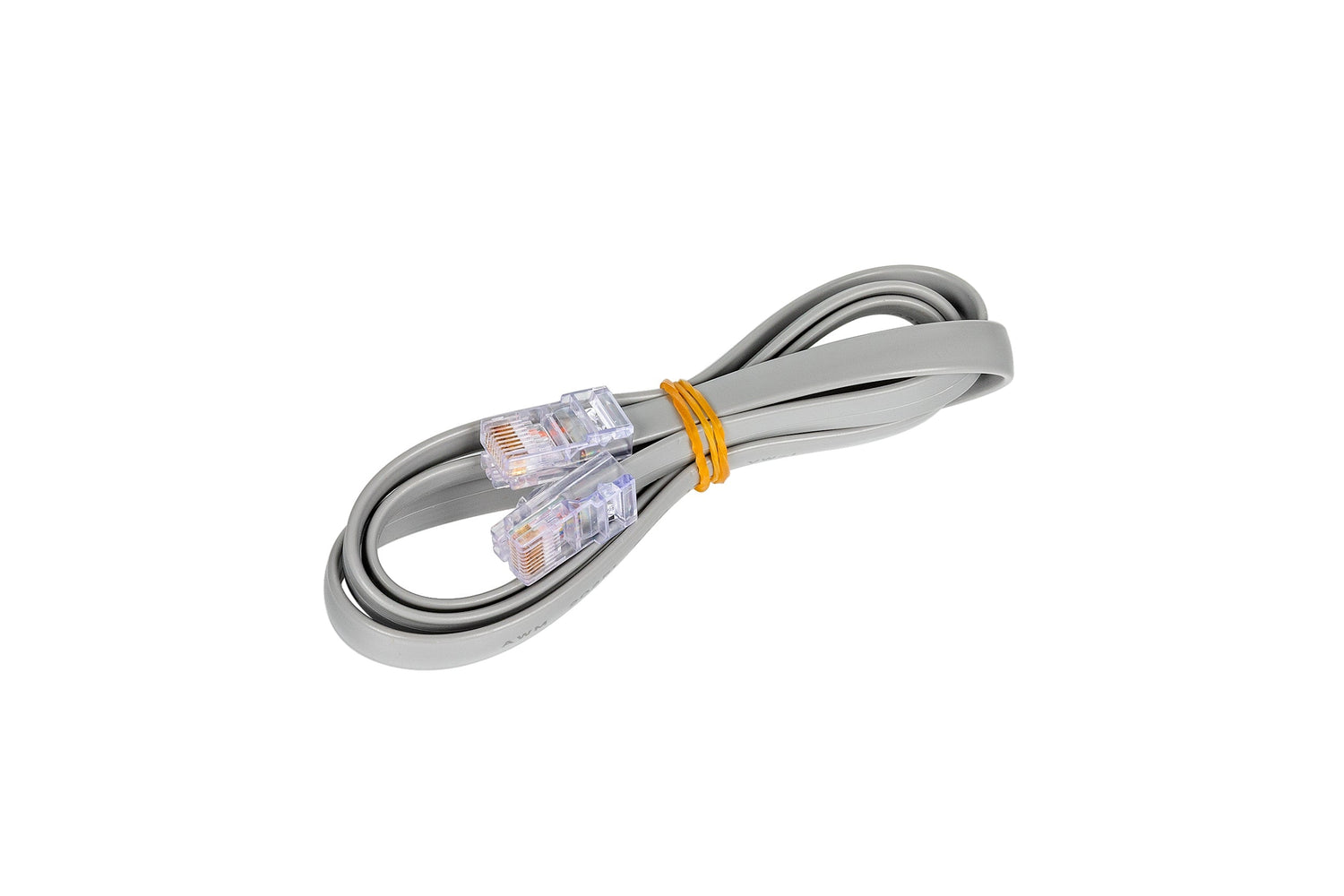

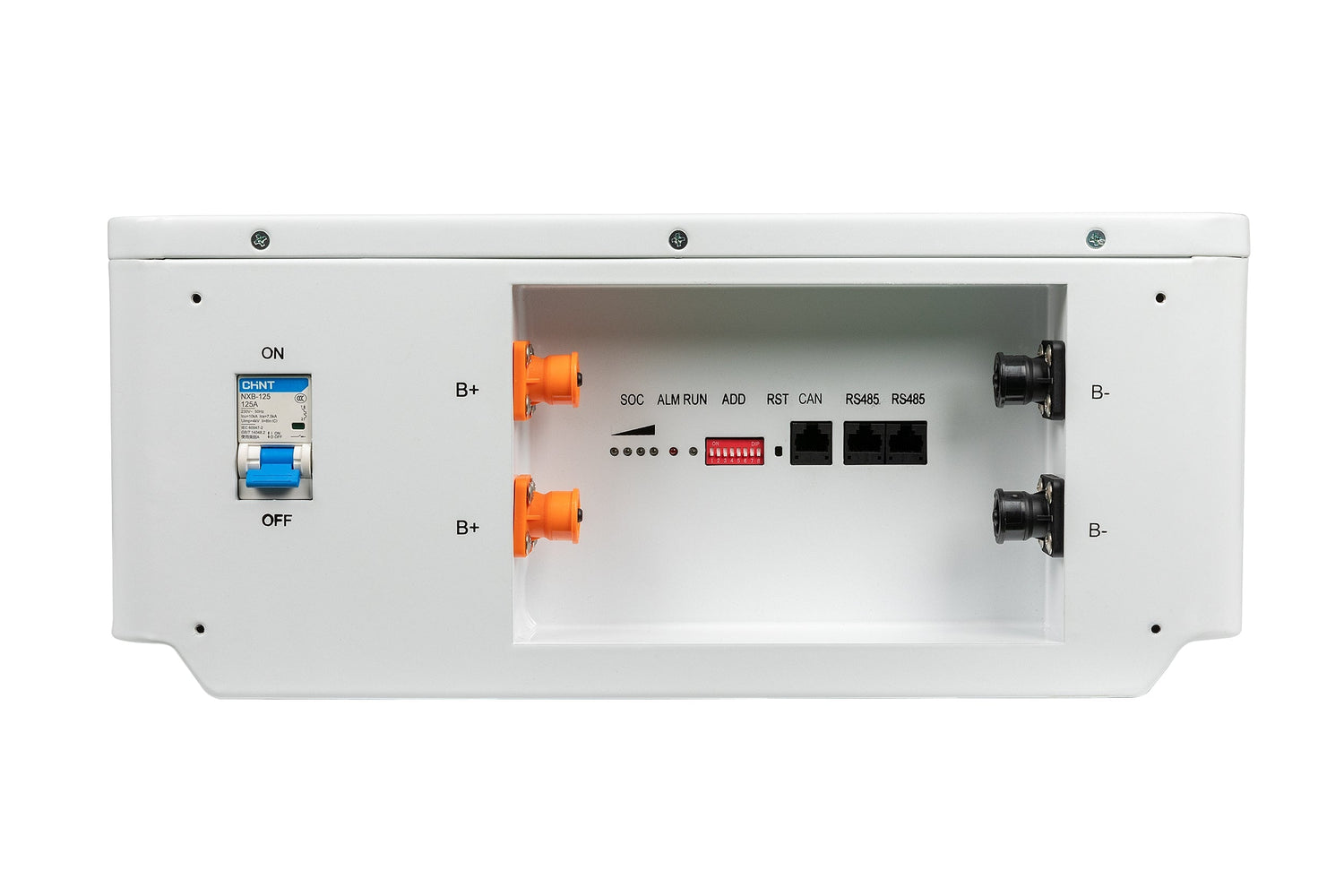

- Communication Functions: Equipped with RSCan/RS485 to Communicate functions, the battery provides easy communication with external devices.
- Safe Energy Storage System: Designed with safety features like over-voltage and under-voltage protection, over-current and short protection, and high/low-temperature protection, this battery offers a safe energy storage system for Canadians looking for a durable and high-quality power solution.
- Dedicated Technical and Customer Support for Entire Product Life: ROCKSOLAR's Canada Technical and Customer Support Center Located in Waterloo, ON . Tech Support Line: 1-800-858-4318

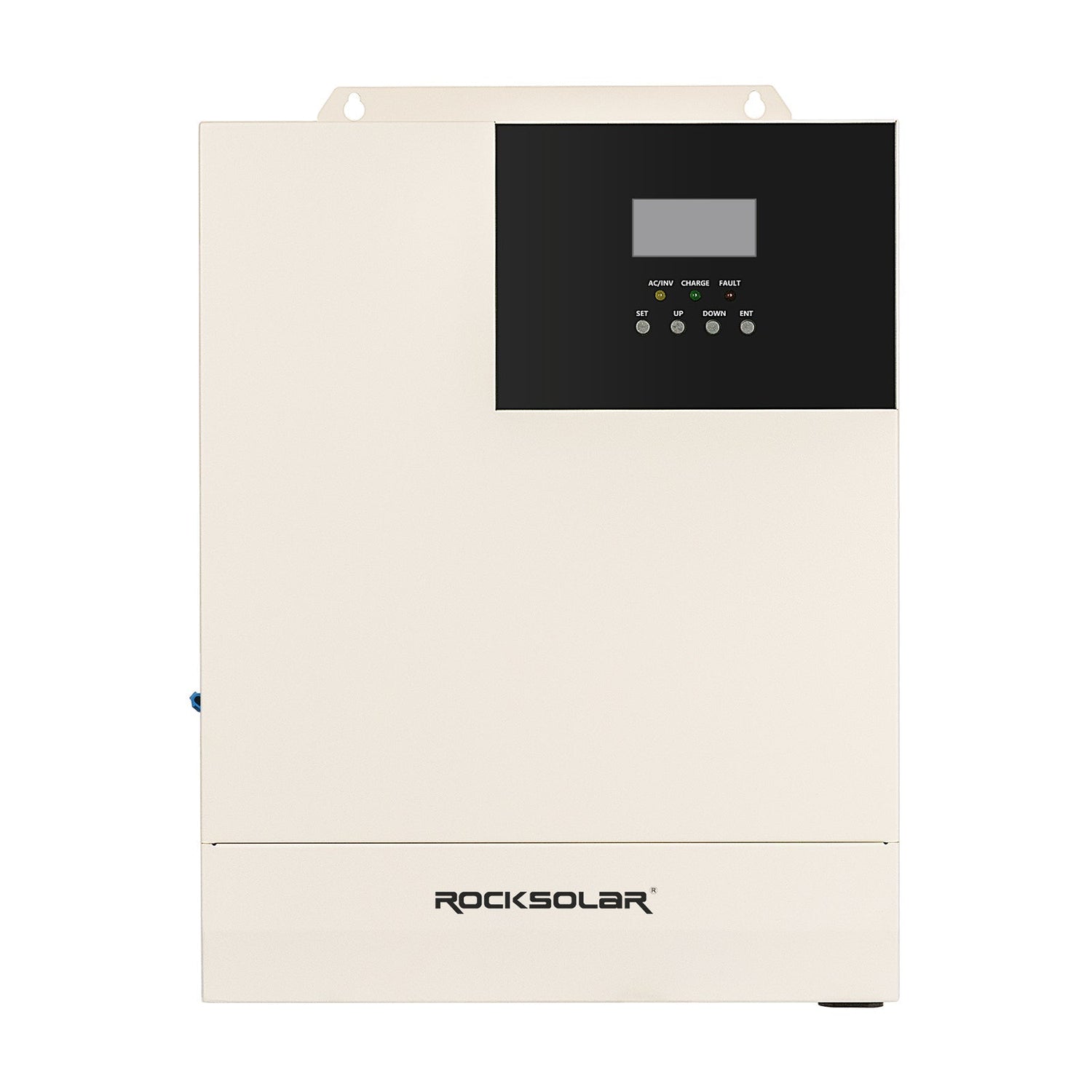

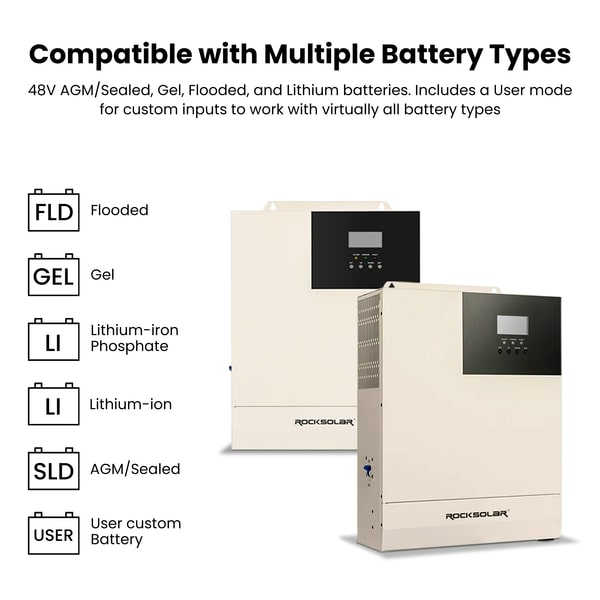

- ROCKSOLAR Pure Sine Wave 48V 5000W Energy Storage Inverter Control All-in-One Machine -
- Maximum Efficiency of Over 95%: The ROCKSOLAR Pure Sine Wave 48V 5000W Energy Storage Inverter Control All-in-One Machine offers a maximum efficiency of over 95%, making it a perfect solution for households looking to reduce their carbon footprint while saving on energy costs.
- Advanced MPPT Technology: This solar inverter is equipped with advanced MPPT technology that has a tracking efficiency of up to 99.9%, ensuring maximum utilization of available solar energy.

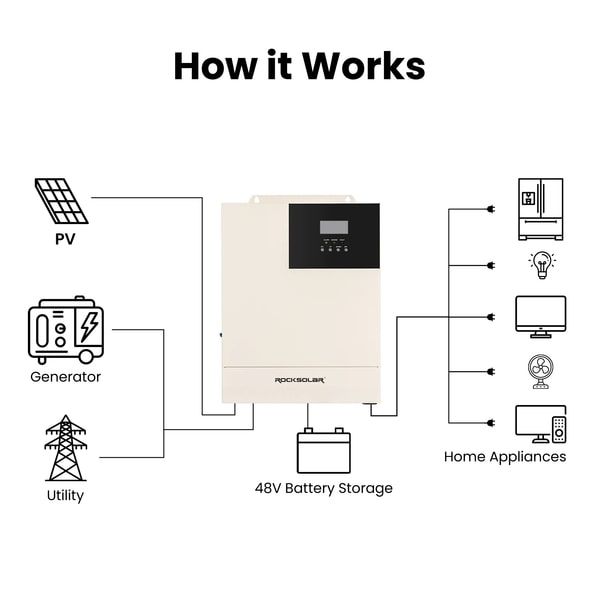

- 4 Optional Charging Modes: The ROCKSOLAR Pure Sine Wave 48V 5000W Inverter Charger comes with 4 optional charging modes, including solar-only, mains priority, solar priority, and mixed charging, allowing you to choose the most suitable charging mode for your energy needs.

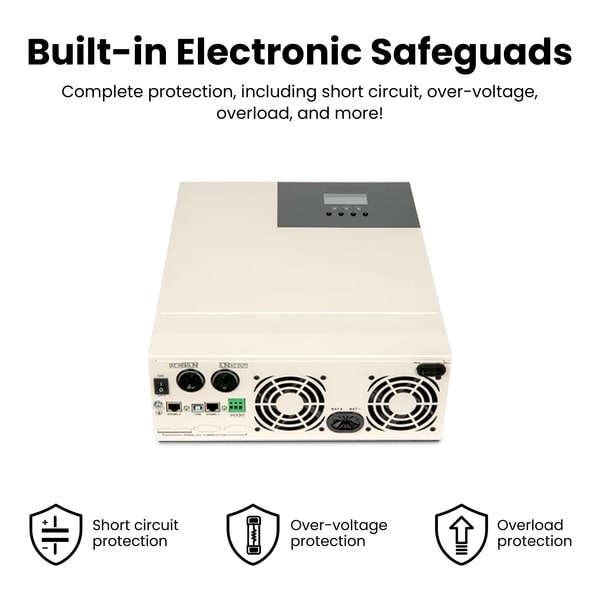

- 360° All-round Protection: With its 360° all-round protection, including short circuit protection, overvoltage and undervoltage protection, overload protection, and backfill protection, you can trust that your system is always powered and protected.
- Intelligent Adjustable Speed Fan: This solar inverter features an intelligent adjustable speed fan, ensuring efficient heat dissipation and a longer system life.
- User-friendly Design: With its sleek design, LCD liquid crystal screen, and ON/OFF rocker switch for AC output control, the ROCKSOLAR Pure Sine Wave 48V 5000W Energy Storage Inverter Control All-in-One Machine is both user-friendly and efficient.
- Dedicated Technical and Customer Support for Entire Product Life: ROCKSOLAR's Canada Technical and Customer Support Center Located in Waterloo, ON . Tech Support Line: 1-800-858-4318
ROCKSOLAR 48V 100Ah LiFePO4 Battery Pack -
|
Product Name |
ROCKSOLAR 48V 100Ah LiFePO4 Battery |
|
Model No. |
XT-P48100 |
|
Battery Chemistry Type |
Lithium-iron Phosphate |
|
Rated Capacity |
100Ah |
|
Rated Power |
5120Wh |
|
Nominal Voltage |
51.2V |
|
Working Voltage Range |
40.5-57.6V |
|
Charging Voltage |
57.6-58.V |
|
Internal Impedance |
≤40mΩ |
|
Standard charge |
Constant Current 10A, Constant Voltage :57.6V |
|
Standard discharge |
Constant current：20A, Discharge End voltage: 43.2V |
|
Maximum Continuous |
100A |
|
Maximum Continuous |
100A |
|
Discharge Current |
0~45℃ |
|
Discharge |
-20~60℃ |
|
Charging/Discharging |
95% |
|
Cycle Life |
≥3000（DOD 80%） |
|
Storage Temperature |
less than 3 months: -20~40℃ |
|
Range |
Less than 7 day : -20~65℃ |
|
Months Self Discharge |
≤3% |
|
Dimensions |
600*420*175mm |
|
Weight |
About46 Kg |
ROCKSOLAR Pure Sine Wave 48V 5000W Energy Storage Inverter Control All-in-One Machine -
|
Model |
ROCKSOLAR Pure Sine Wave 48V 5000W Inverter Charger-145 |
|
Allowable Number of Parallel Machines |
1~6 units |
|
Rated Input Voltage |
220/230Vac |
|
(170Vac~280Vac) ±2% |
|
|
Input Voltage Range |
(90Vac-280Vac)±2% |
|
Frequency |
50Hz/ 60Hz (automatic detection) |
|
47±0.3Hz ~ 55±0.3Hz (50Hz); |
|
|
Frequency Range |
57±0.3Hz ~ 65±0.3Hz (60Hz); |
|
Overload/Short Circuit Protection |
breaker |
|
Maximum Efficiency |
>95% |
|
Conversion Time |
10ms (typ.) |
|
AC Backfeed Protection |
have |
|
Maximum Bypass Overload Current |
40A |
|
Output Voltage Waveform |
pure sine wave |
|
Rated Output Power (VA) |
5000 |
|
Rated Output Power (W) |
5000 |
|
Power Factor |
1 |
|
Rated Output Voltage (Vac) |
230Vac |
|
Output Voltage Error |
±5% |
|
Output Frequency Range (Hz) |
50Hz ± 0.3Hz/60Hz ± 0.3Hz |
|
Maximum Efficiency |
>92% |
|
(102%<Load<125%) ±10%: Report an Error and Turn off the Output after 5 Minutes |
|
|
(125%<Load<150%) ±10%: Report an Error and Turn off the Output after 10 Seconds |
|
|
Load>150% ±10%: Report an Error and Turn off the Output after 5 Seconds |
|
|
Solar Energy Storage Inverter Control All-in-One Machine |
|
The ROCKSOLAR PowerShield Series 2 Backup Power System is a reliable and efficient backup power solution in Canada. It includes the ROCKSOLAR 48V 100Ah LiFePO4 Battery Pack and the ROCKSOLAR Pure Sine Wave 48V 5000W Energy Storage Inverter Control All-in-One Machine, both of which are made in Canada.
The ROCKSOLAR PowerShield Series 2 Backup Power System includes the ROCKSOLAR 48V 100Ah LiFePO4 Battery Pack and the ROCKSOLAR Pure Sine Wave 48V 5000W Energy Storage Inverter Control All-in-One Machine.
The ROCKSOLAR 48V 100Ah LiFePO4 Battery Pack has a 100Ah capacity and 51.2V nominal voltage. It offers over-voltage, under-voltage, over-current, short protection, and high/low-temperature protection. It has over 3000 cycles at 80% depth of discharge, making it a long-lasting and efficient choice for backup power, lowering energy bills, or living off the grid.
The ROCKSOLAR Pure Sine Wave 48V 5000W Energy Storage Inverter Control All-in-One Machine boasts advanced MPPT technology with a tracking efficiency of up to 99.9%, ensuring maximum utilization of available solar energy. It has a maximum efficiency of over 95%, making it the perfect solution for households looking to reduce their carbon footprint while saving on energy costs. It also offers fully digital voltage and current double closed-loop control, advanced SPWM technology, and a pure sine wave output.
The ROCKSOLAR PowerShield Series 2 Backup Power System is designed for Canadians looking for a durable, high-quality, and safe energy storage system that can meet their energy needs with ease.
The ROCKSOLAR PowerShield Series 2 Backup Power System provides a reliable source of power when you need it most. With its efficient charging and discharging capabilities, it provides maximum battery life, ensuring a long-lasting and efficient choice for backup power, lowering energy bills, or living off the grid. It is a durable, high-quality, and safe energy storage system that can meet your energy needs with ease.
