ROCKSOLAR 500W 12V Off-Grid Solar System
- Complete Kit: Includes battery, panel, inverter, and controller.
- Powerful Battery: 12V 50Ah LiFePO4 with built-in BMS.
- Efficient Panel: 100W Monocrystalline with 22% efficiency.
- Pure Sine Inverter: 500W for steady power delivery.
- MPPT Controller: 20A for maximizing battery life.
- Rugged Design: Panel is waterproof and corrosion-resistant.
- Safe Operations: Fully protected with BMS.
- Versatile: Powers various devices, ideal for off-grid use.
- Long Warranty: 10 years for both battery and panel.

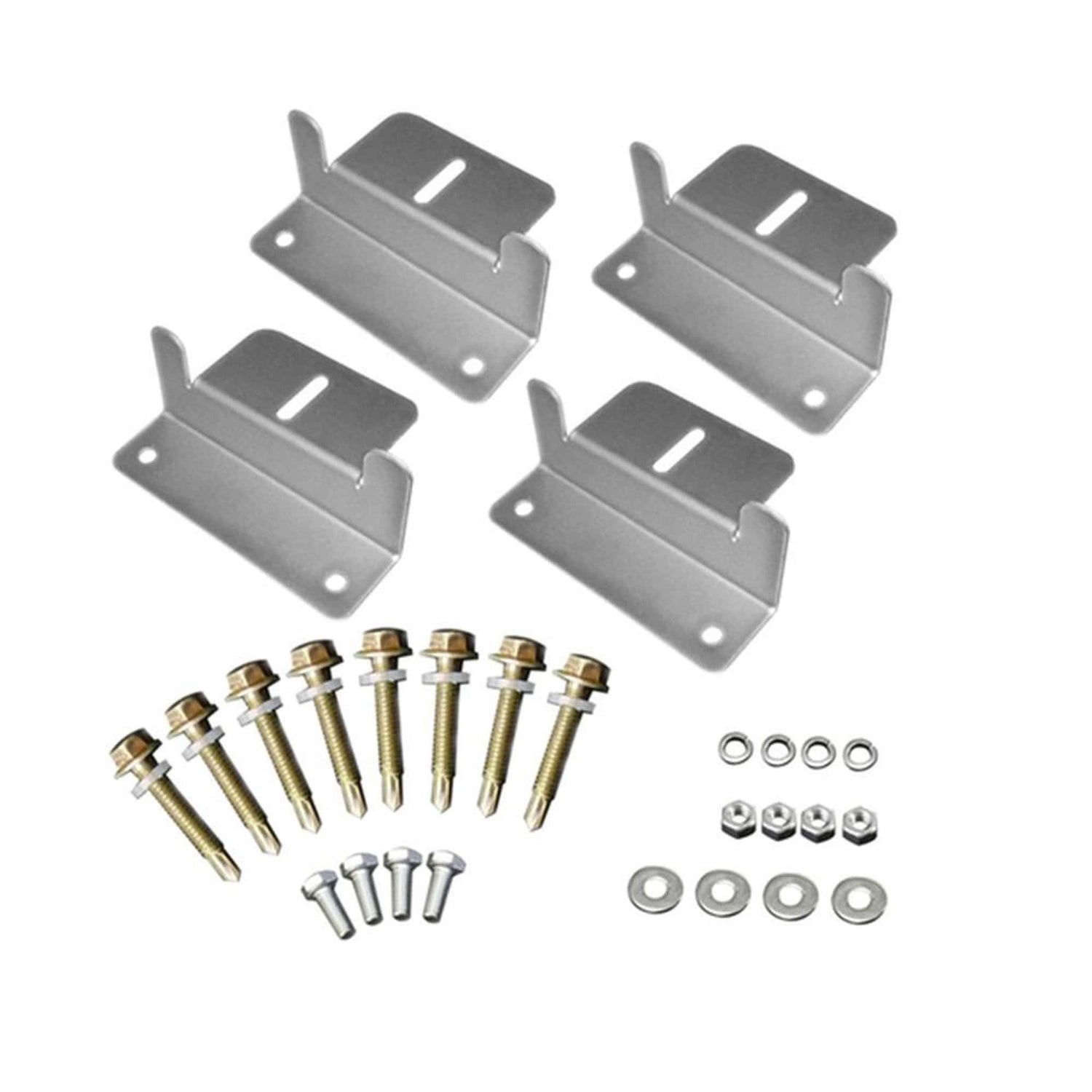

- Easy Installation: Comes with Z-Brackets and MC4 connectors.
- Expandable: Designed for future upgrades and expansion.
ROCKSOLAR 500W 12V Off-Grid Solar System is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Free Shipping
Free Shipping
Orders Over $100? Shipping's On Us!
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Lifetime Customer Support
Lifetime Customer Support
Endless Support, Because You Matter.
Inverter
Charge Controller
Description
Description
The ROCKSOLAR 500W 12V Off-Grid Solar System is a thoughtfully engineered power solution tailor-made for Canadian cottages. It is designed to give you a complete and reliable power supply, whether you're unwinding at your summer cottage or seeking a dependable year-round energy solution.

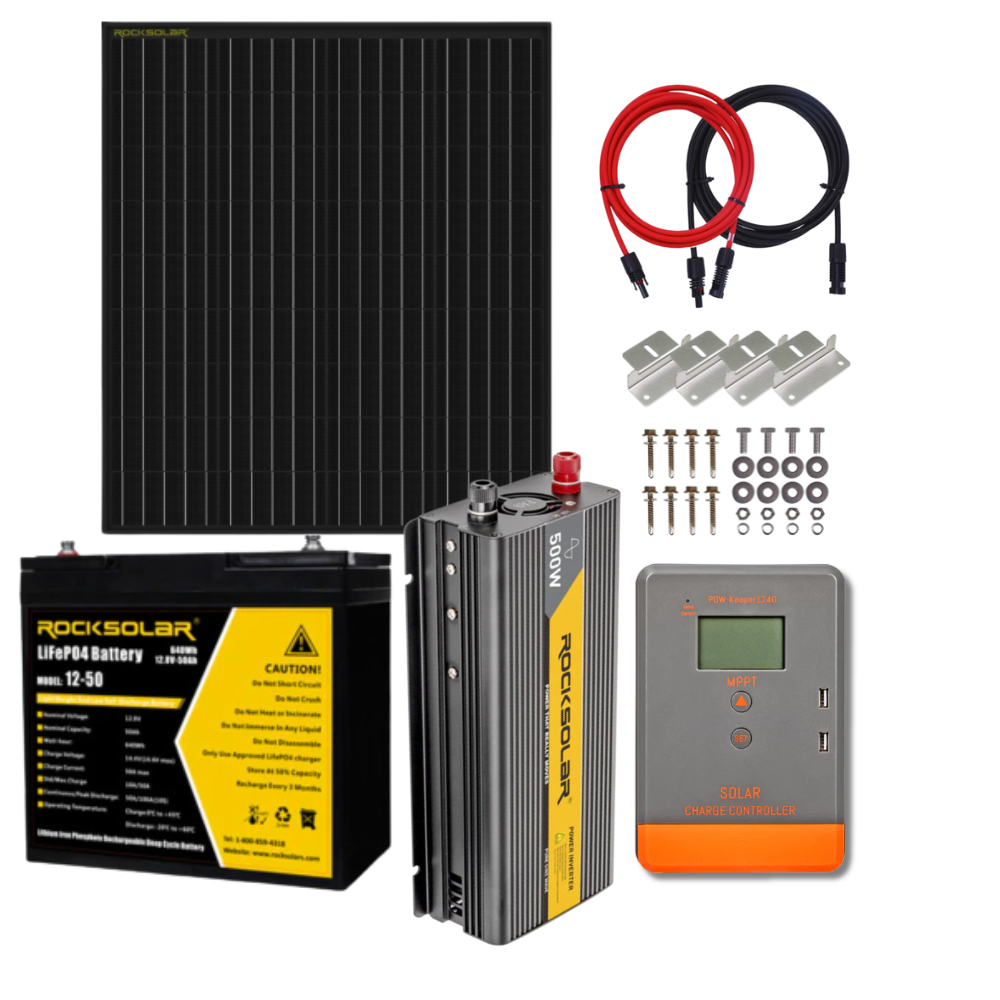

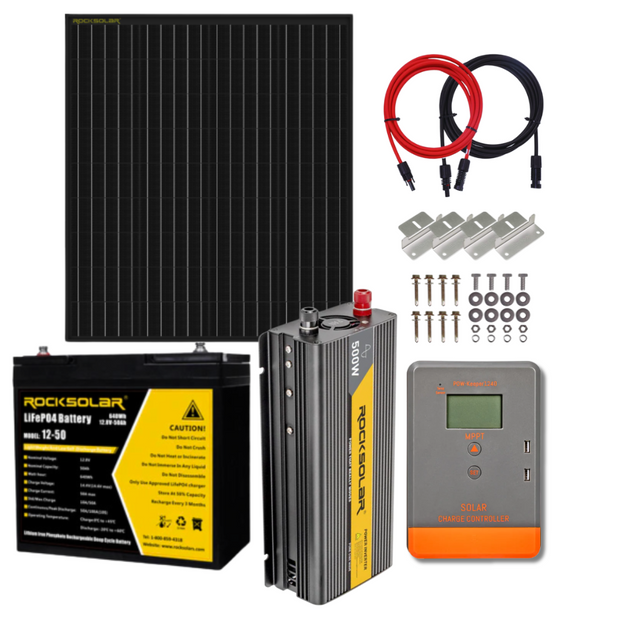

Four-Piece Power Symphony:
This comprehensive package features four key components:
- ROCKSOLAR 12V 50Ah Deep Cycle LiFePO4 Battery with BMS System: For optimal energy storage and smart battery management.
- 100W Rigid Solar Panel: Built to last, providing a stable and high-efficiency energy source.
- 20A MPPT Solar Charge Controller: For precision energy control and maximized charging efficiency.
- 500W Pure Sine Wave Inverter: To convert DC to AC power, ensuring smooth power delivery to your devices.
All-Around Energy Solution:
The system is perfect for powering various essential devices from mini fridges and LCD TVs to water pumps and laptops. Designed with Canadian cottage life in mind, it covers all your energy needs effortlessly.
Designed for Longevity:
The system is not only robust but also backed by a substantial warranty—10 years for the Battery and Solar Panel, and a 1-year warranty for the remaining components. You can rely on ROCKSOLAR for a long-term, hassle-free experience.
A Step Ahead in Energy Independence:
One of the standout features of this system is its future-proof design. It comes with free upgrade services and easily exchangeable key components, allowing you to expand your system as your energy needs grow.
Smart Energy Management:
With the 20A MPPT Solar Charge Controller, your battery will be charged efficiently and safely. Plus, the 500W Pure Sine Wave Inverter ensures that the power supply is consistent and reliable, free from fluctuations that could damage sensitive electronics.
Compact Yet Powerful:
Though the entire system is easily manageable in terms of size and weight, it packs a punch when it comes to performance. With 3500+ battery cycle life and 100% discharge rate, you're looking at long-lasting, reliable power.
Invest in the ROCKSOLAR 500W 12V Off-Grid Solar Power System today and elevate your cottage life with 24/7 uninterrupted power, backed by a reliable long-term warranty. It's not just a power system; it's peace of mind.
SPECIFICATIONS
SPECIFICATIONS

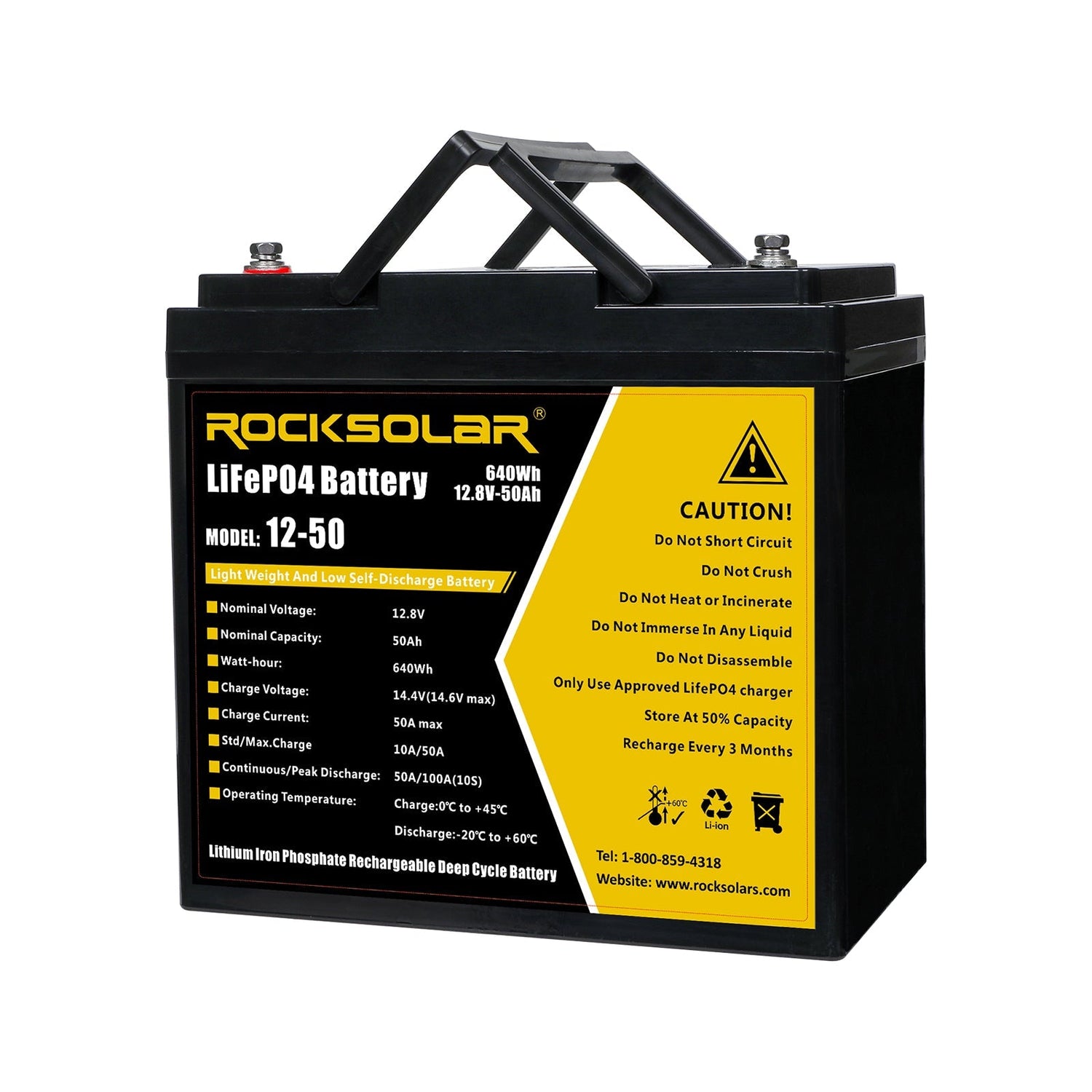

12V 50Ah Deep Cycle LiFePO4 Battery | Details |
---|---|
Product Dimensions | 14.99 x 6.6 x 9.4 cm |
Battery Type | Lithium Ion battery |
Special Features | Deep cycle |

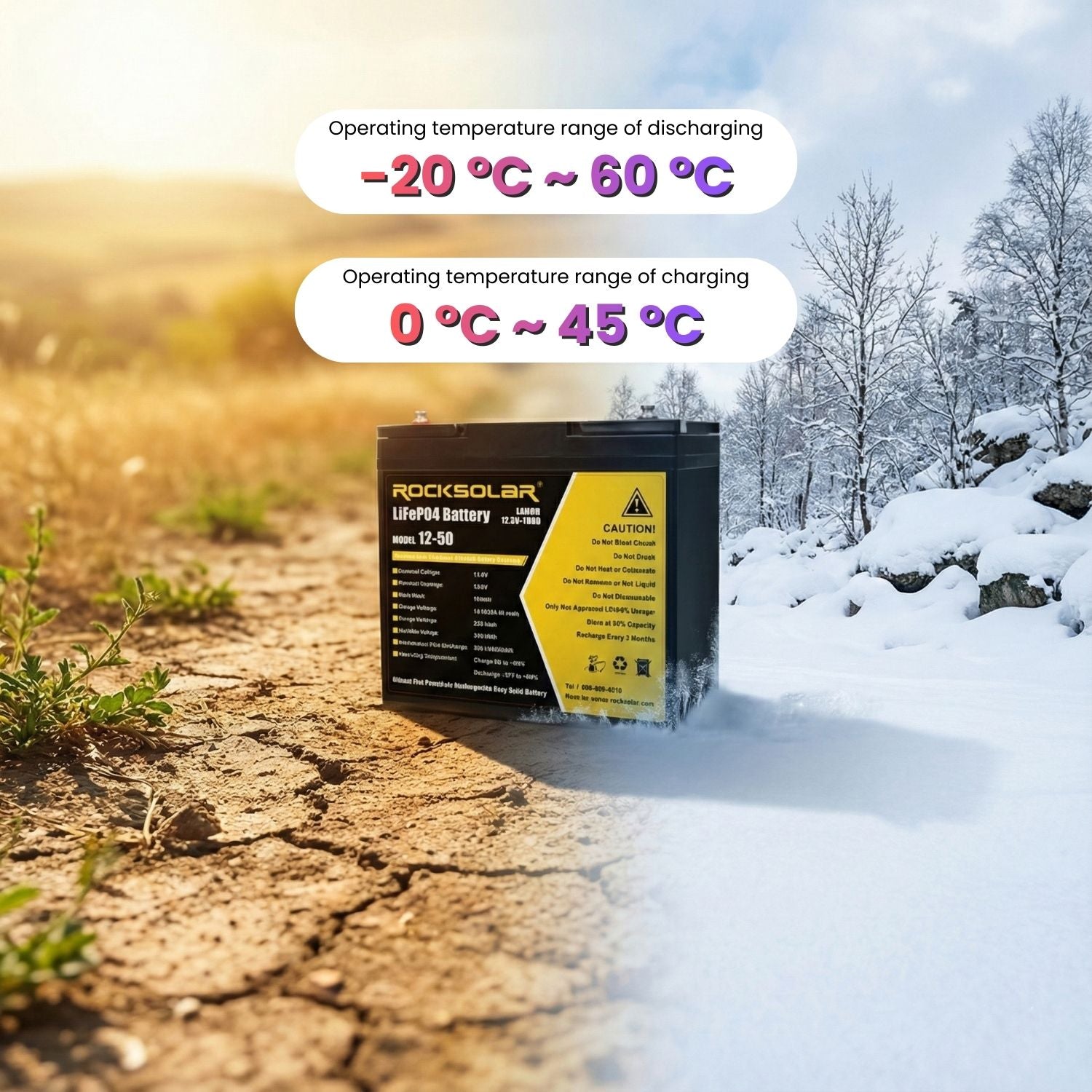

Working Temperature | -20C -60C |
Voltage | 12 Volts (DC) |
Item Weight | 5.9 kg |
Warranty | 11 Years |

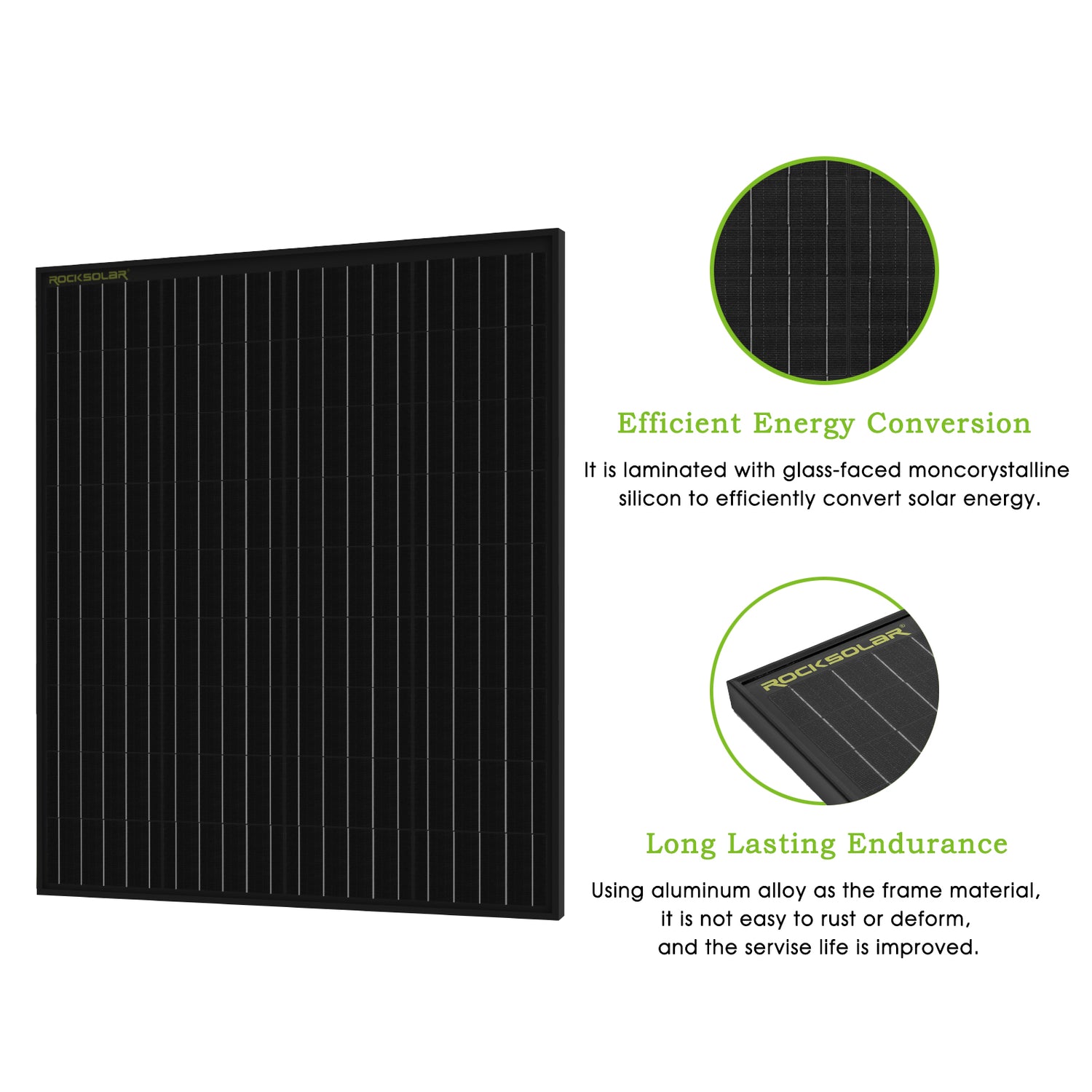

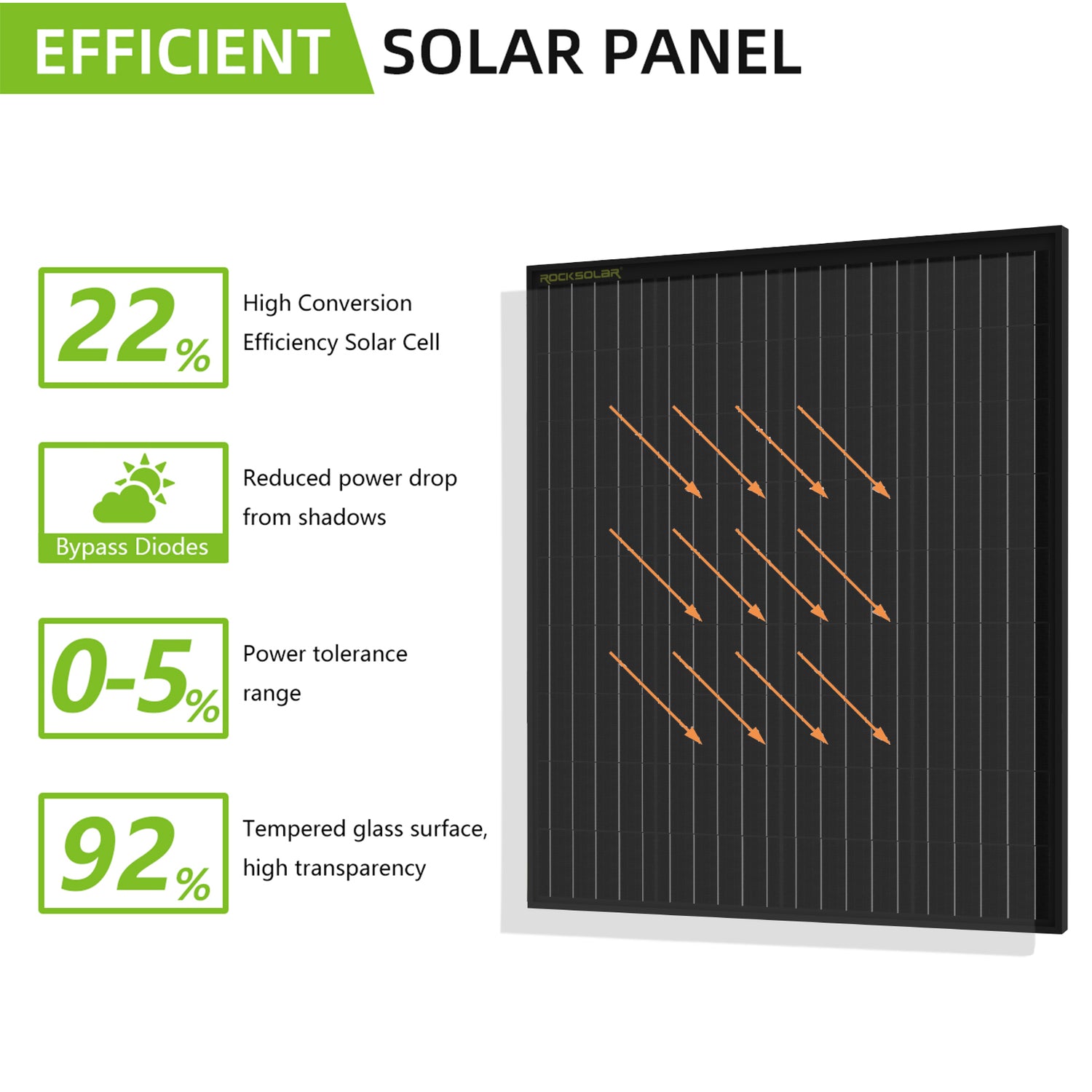

100W 12V Rigid Monocrystalline Solar Panel | Details |
---|---|
Rated Power | 100W |
Type | Mono-crystalline silicon |
System Voltage | 12V |
Cell Efficiency | 20-22% |
Frame Material | Aluminum |

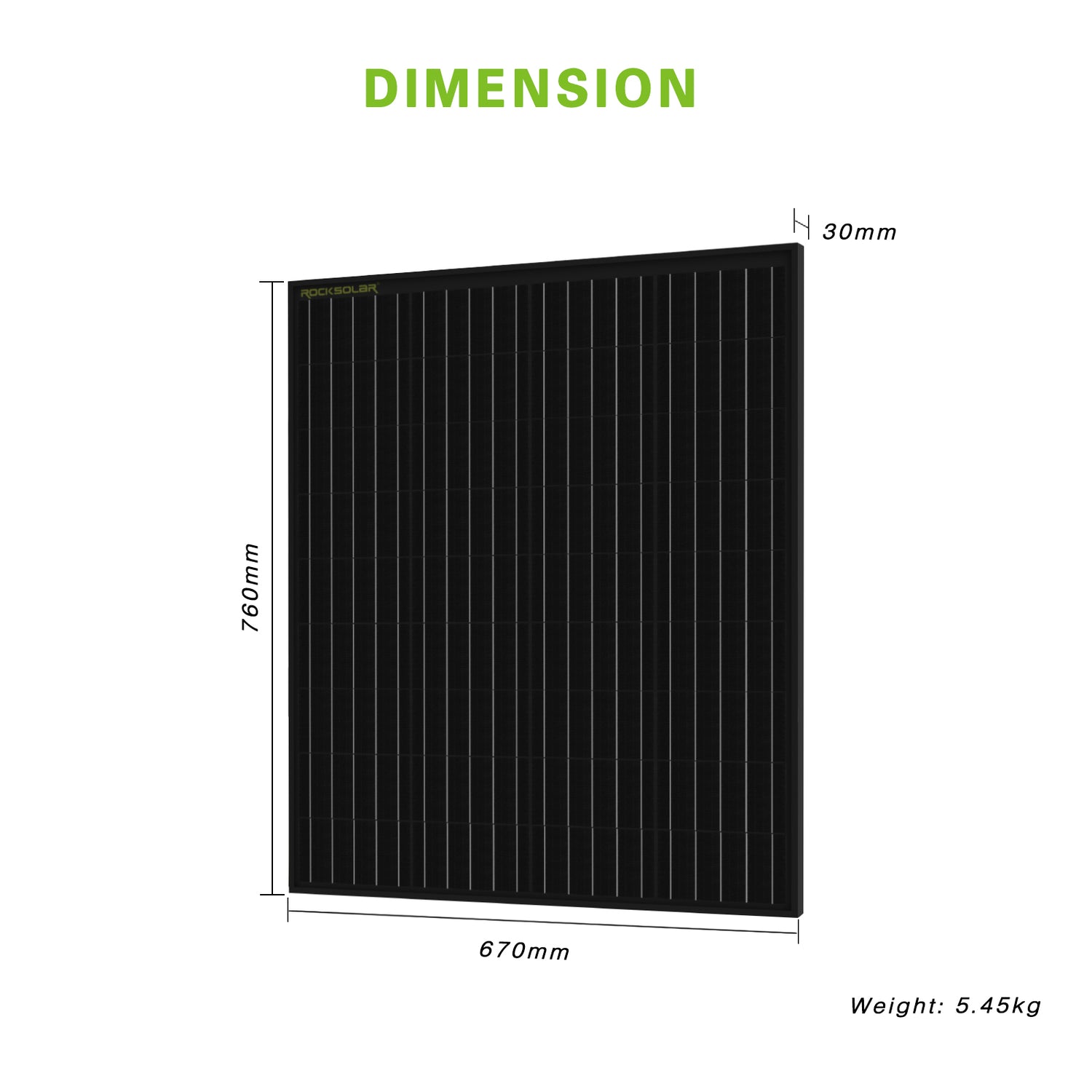

Dimensions | 760 x 670 x 30 mm |
Weight | approx. 25-30 lbs |
Operating Temperature | -40°C to +85°C |

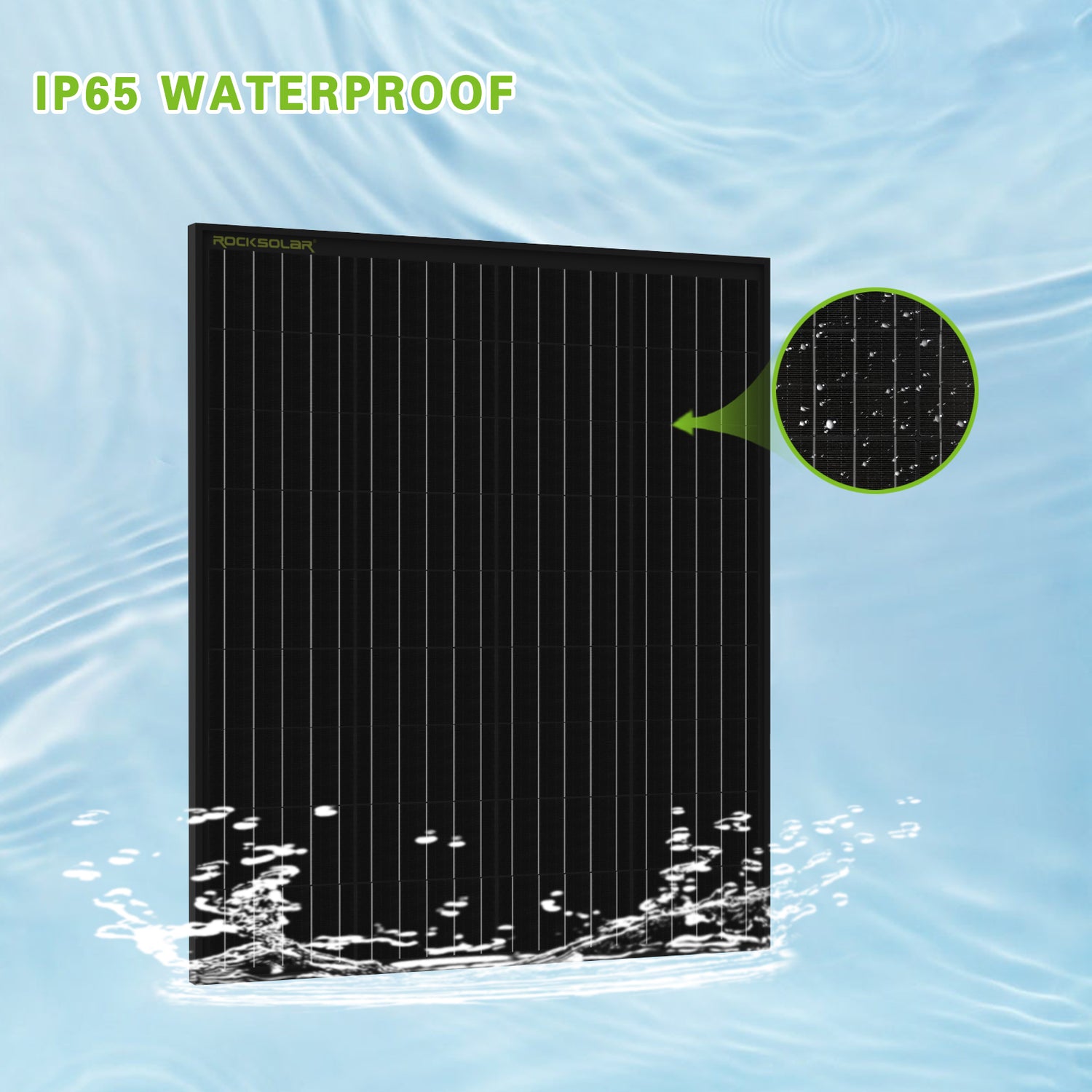

Waterproof Rating | IP65 |
Front Glass | High light transmittance, low-iron tempered glass |
Bypass Diodes | Integrated |

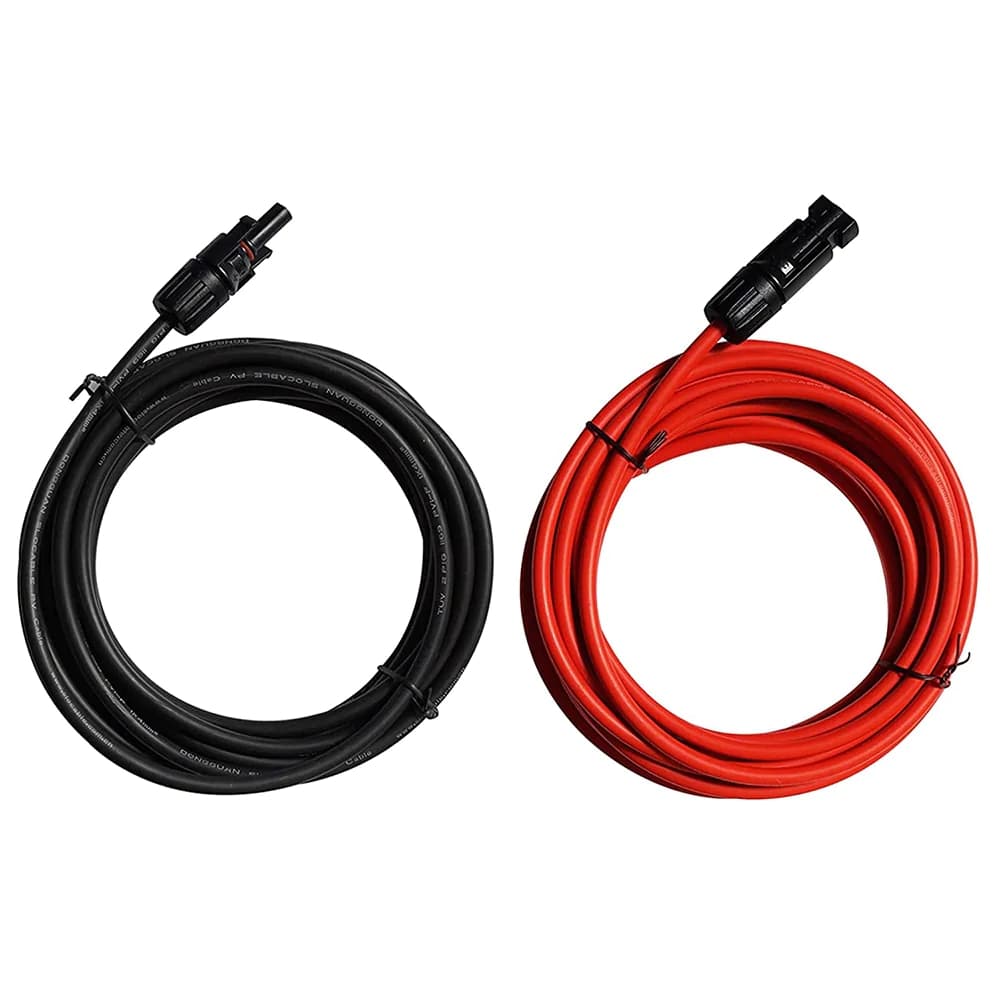

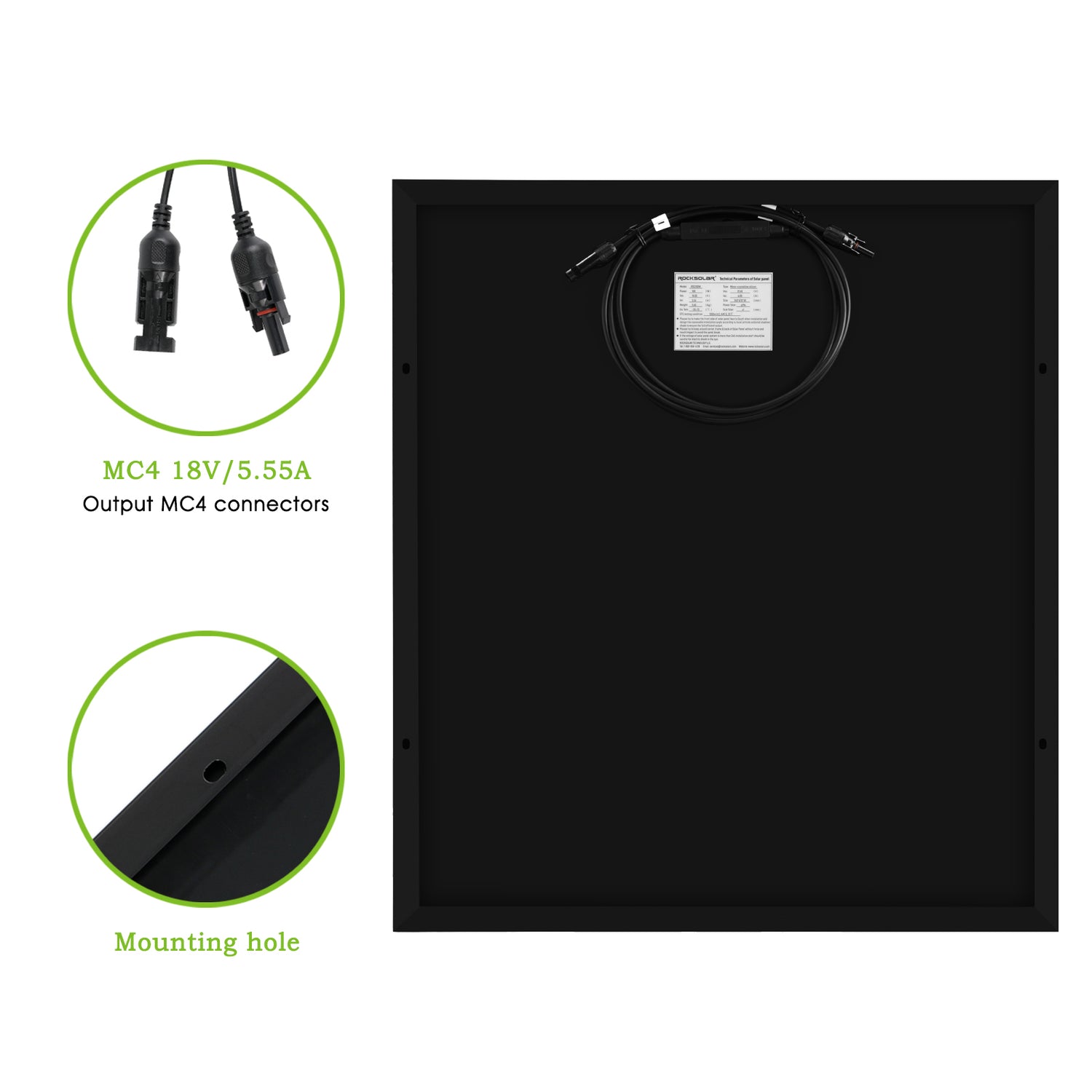

Connectors | MC4 |
Cable Length | Varies depending on the brand (approx. 3-6 ft) |
Mounting Hole Locations | Pre-drilled |
Service Life | 25 years or more |
Warranty | 10 Year |

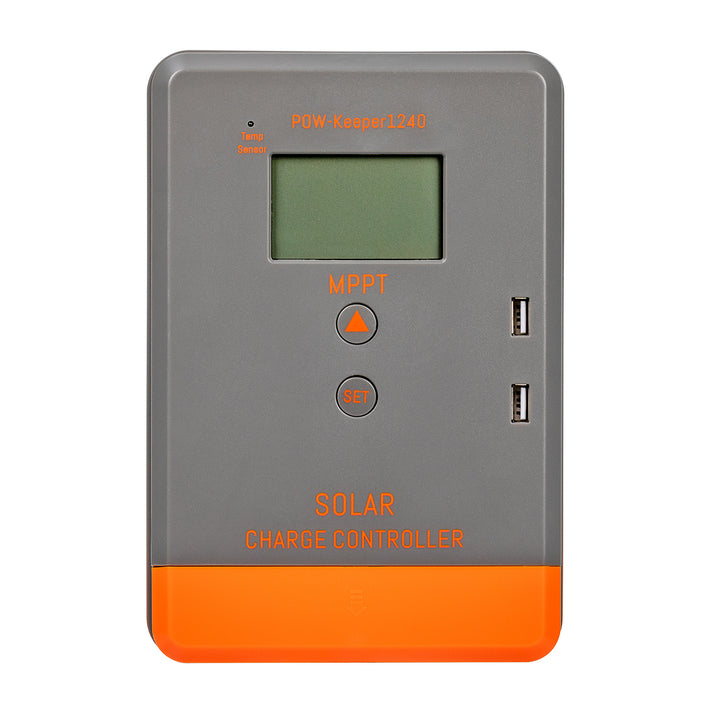

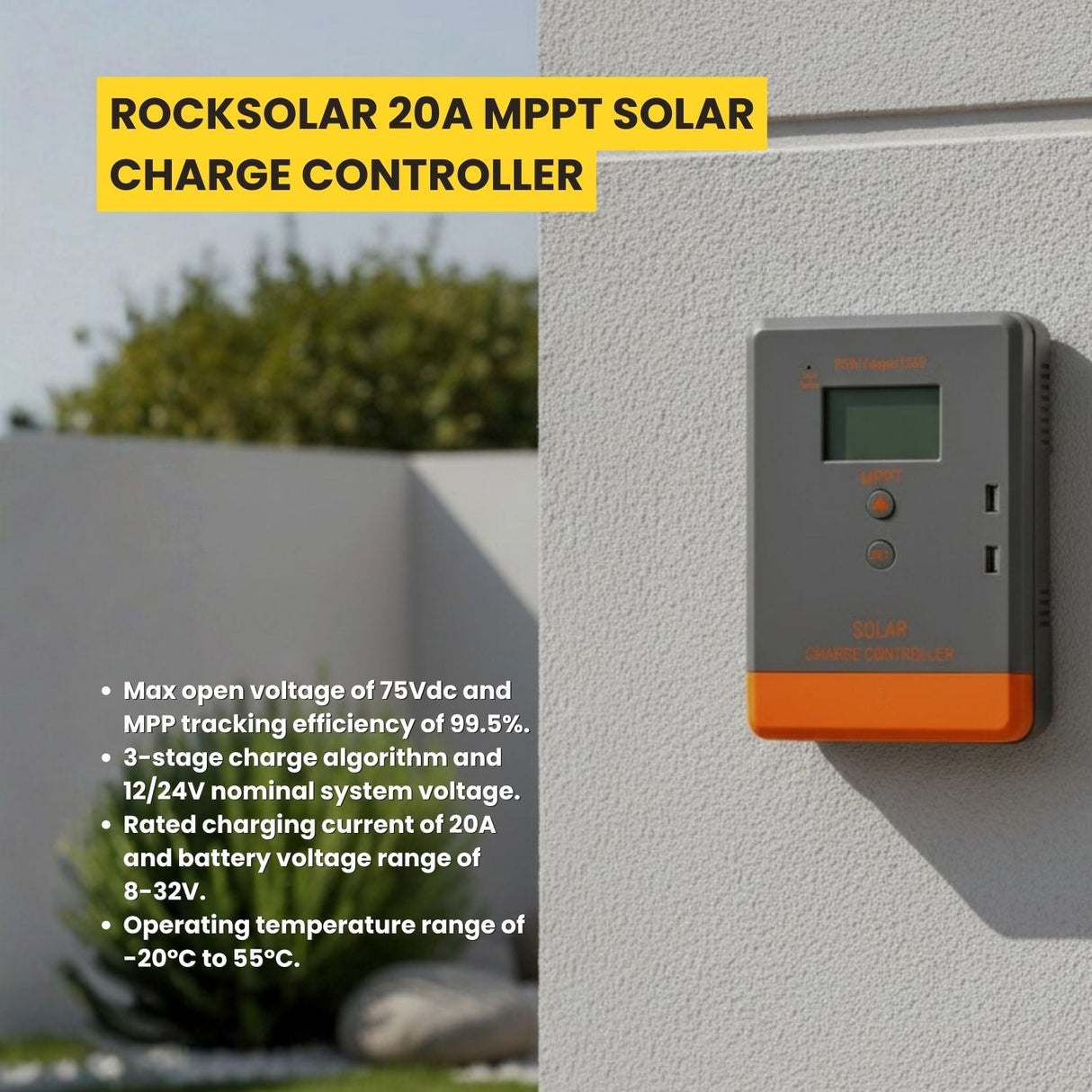

20A MPPT Solar Charge Controller | Details |
---|---|
Max Open Voltage of PV Module | 75Vdc |
MPP Tracking Efficiency | 99.50% |
Light Control Voltage | 5V |
Charge Algorithm | 3 Stage |
Battery Type | Lithium and Lead Acid Battery |
Nominal System Voltage | 12/24V |
Rated Charging Current | 20A |
Battery Voltage Range | 8~32V |
High Voltage Disconnection | 16V (24V x 2) |
Duration for absorption charging | 2 hours |
Charge Loop Voltage Drop | ≤0.29V |
Self-consumption | ≤ 9.2mA 12V; ≤ 11.7mA 24V |
Equalized Charging Voltage | AGM: 14.6V; GEL: No; FLd: 14.8V |
Absorption Charging voltage | AGM: 14.4V; GEL: 14.2; FLd: 14.6V |
Floating Charging voltage | AGM/ GEL/ FLd: 13.8V |
Low Voltage re-connection (LVR) | AGM/ GEL/ FLd: 12.6V |
Low Voltage Disconnection (LVD) | AGM/ GEL/ FLd: 10.8V |
Operating Temperature Range | -20℃~55℃ (To run at full rated current continuously) |
LCD Temperature Range | -20℃~70℃ |
Humidity Range | ≤95% No condensation |
Protection Class | IP30 |
Dimension | 123*178*48 |
Installation Hole | 108*120 ∅5 |
Warranty | 1 Year |

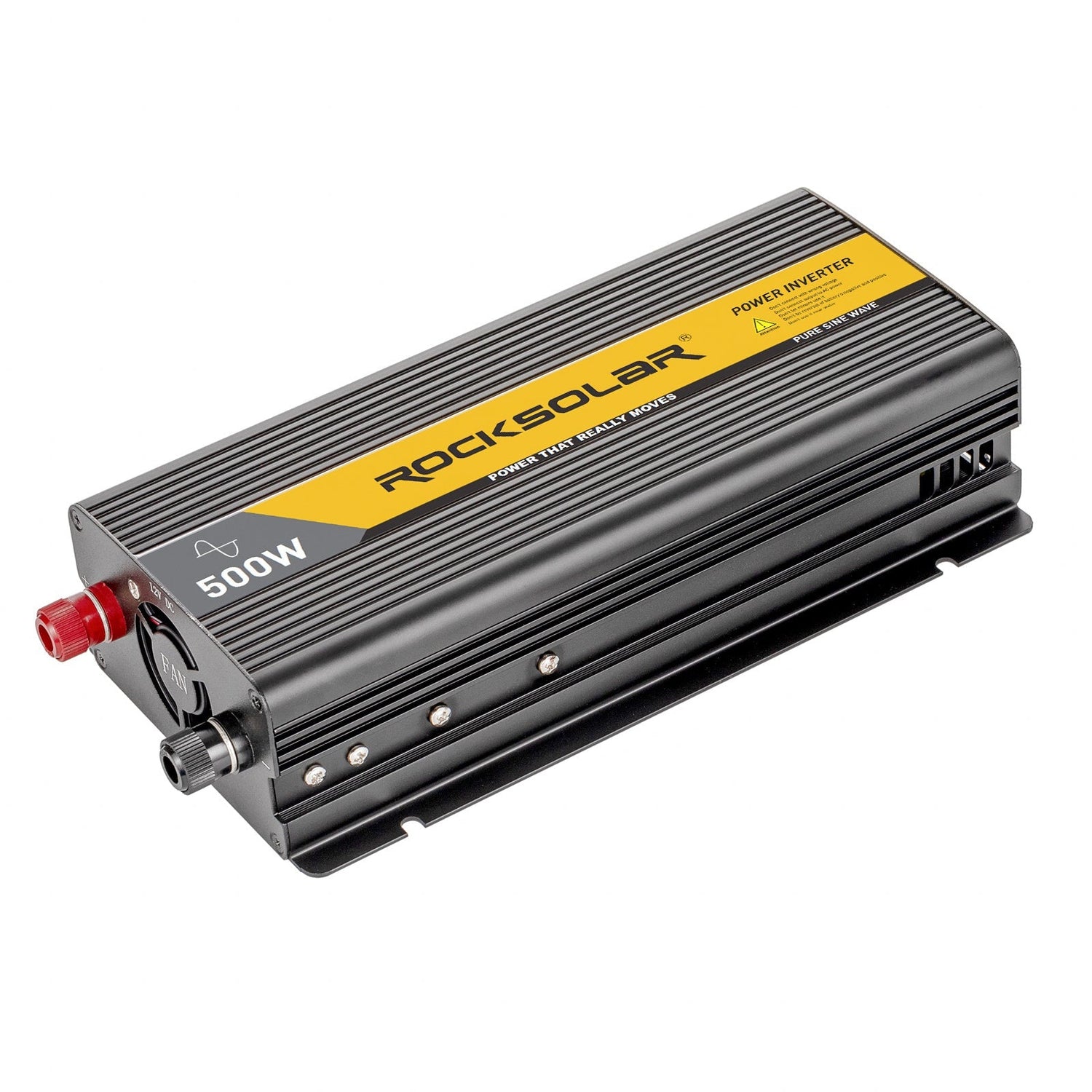

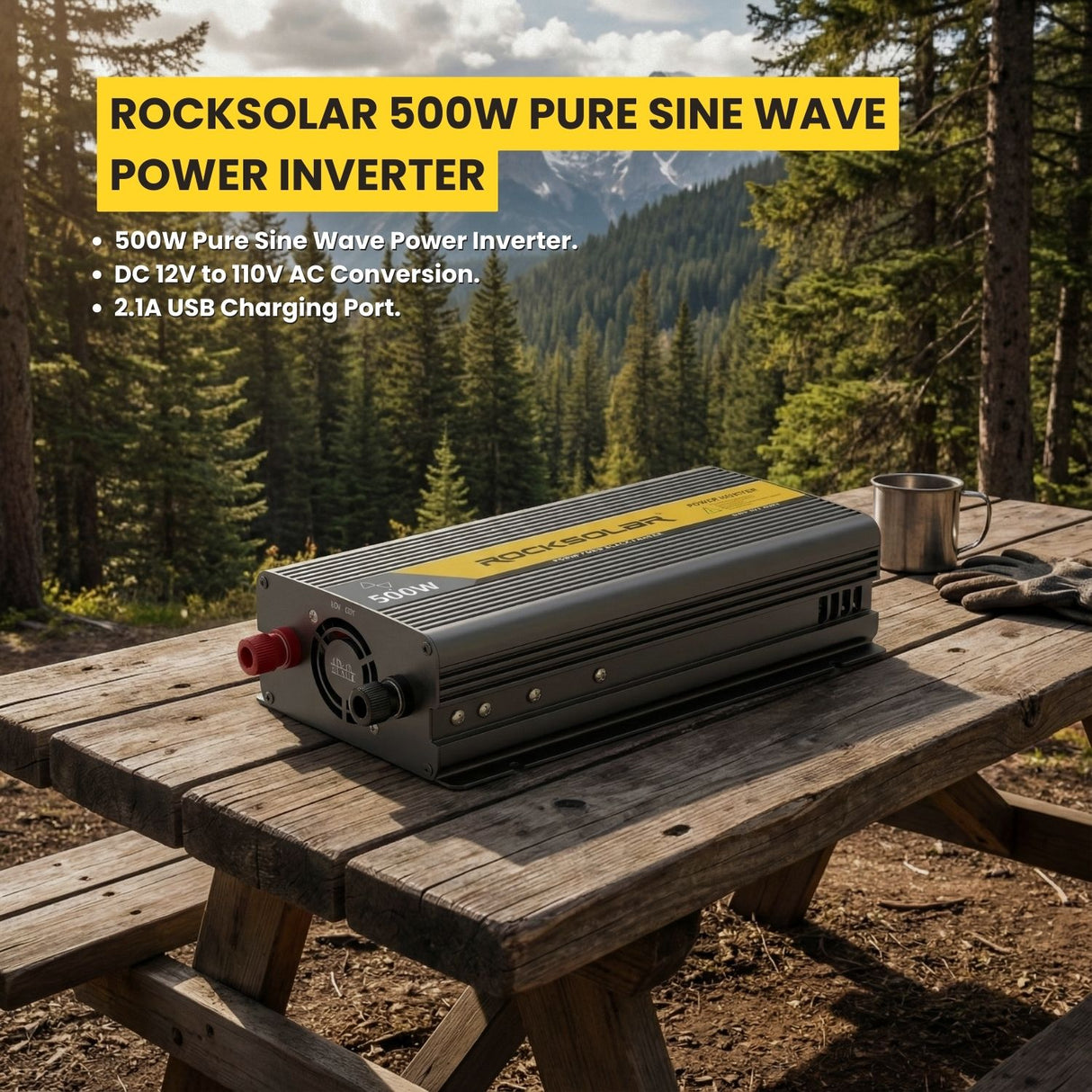

500W Pure Sine Wave Power Inverter | Details |
---|---|
Rated power | 500W |
AC Voltage | 120V |
Frequency | 60HZ |
Resistive Load Continuous Output Power | 500W |
Inductive Load Continuous Output Power | 450W The electric drill can start normally (beyond the protection may be possible, but the inverters will not be damaged) |
Capacitive Load Continuous Output Power | 150±30W,PF:0.6(Tri-color energy saving lamp, beyond which protection may be possible, but will not cause damage to the inverter) |
Waveform | Pure Sine Wave |
Waveform Distortion(THD) | ≤5% |
Voltage range | 10~15.5Vdc |
Battery Voltage | 12Vdc |
DC Current | 52.1A(500W resistive load when 12Vdc is input) |
No Load Loss | ≤0.8 A(input 12Vdc) |
Shutdown mode static current | 15mA |
Maximum efficiency | 88% |
Battery type | All 12V batteries |
Insurance slice | 40A*2 |
Battery Low Voltage Alarm | 10.5Vdc Peak buzzer alarm |
Battery Low Voltage Alarm Recovery | 11Vdc |
Battery Low Voltage Protection | 10Vdc Peak buzzer alarm, bright red and green lights |
Battery Low Voltage Protection Recovery | 12Vdc |
Battery High Voltage Protection | 15.5Vdc Peak buzzer alarm, bright red and green lights |
Battery High Voltage Protection Recovery | 15Vdc |
Over Temperature | Turn off output, bright red and green indicators, buzzer alarm, temperature reduction, automatic recovery output |
Output Short Circuit | Turn off output and lock, bright red and green lights, whistle alarm, remove short circuit and restart to normal output |
Overload | Load 550W: 10S Turn off output, self-lock bright red and green lights, resume normal output after load reduction restart |
Overload | Load 650W: 1S Turn off output, self-lock bright red and green lights, resume normal output after load reduction restart |
USB Output Voltage | 5V |
USB Output Current | 2.1A |
Working Temperature | 0~40℃ |
Operating humidity | 10~90%RH |
Storage temperature, humidity | -30℃~70℃,10~95%RH |
Weight | Net weight:0.94Kg |
Size | 250.6*118*56mm(L*W*H) |
Warranty | 1 Year |
